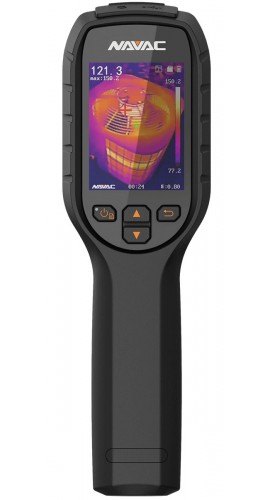

Troubleshoot systems through a new lens with the NMT1000 thermal imaging camera. Designed for HVAC/R applications and equipped with a 160 x 120 resolution thermal detector, it provides technicians with fast and accurate thermal imaging of the entire measurement field, instead of just spot temperature.
Troubleshoot systems through a new lens with the NMT1000 thermal imaging camera. Designed for HVAC/R applications and equipped with a 160 x 120 resolution thermal detector, it provides technicians with fast and accurate thermal imaging of the entire measurement field, instead of just spot temperature.
This thermal imaging camera highlights the highest and lowest temperature spots in the field to assist with fast diagnosis and troubleshooting of HVAC/R systems.
Features
| Thermal Resolution | 160 x 120 (19,200 pixels) |
| Refresh Frequency | 25 Hz |
| Display | 320 x 240 pixels, 2.4" (6.1 cm) color LCD |
| Temperature Range | -4 to 1022°F (-20 to 550 °C) |
| Measuring Accuracy | ±3.6°F (±2°C) or ±2% |
| Thermal Sensitivity (NETD) | <10 mK |
| Battery Life | 8 hours |
| Measurement Presets | Center spot, hot spot, cold spot, off |
| Thermal Resolution | 160 x 120 (19,200 pixels) |
| Refresh Frequency | 25 Hz |
| Display | 320 x 240 pixels, 2.4" (6.1 cm) color LCD |
| Temperature Range | -4 to 1022°F (-20 to 550 °C) |
| Measuring Accuracy | ±3.6°F (±2°C) or ±2% |
| Thermal Sensitivity (NETD) | <10 mK |
| Battery Life | 8 hours |
| Measurement Presets | Center spot, hot spot, cold spot, off |
