With a wide temperature range, this data logger makes it easy to record samples. The integrated RTD technology provides superior accuracy.
With a wide temperature range, this data logger makes it easy to record samples. The integrated RTD technology provides superior accuracy.

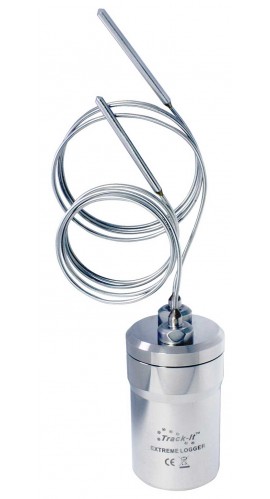

Simple to setup and deploy, the Monarch 5396-1123 Track-It Extreme Temperature Data Logger with Dual 22" Bendable Probes lets you log up to 30,000 samples of temperature data. Set up the MKT calculation over the entire data file or during selected time intervals to suit your application.
Features
Applications
| Sample Rates | User configured, 1 every 2 seconds to 1 every 24 hours |
| Number of Samples | 30,000 |
| Record Triggers | 2 |
| Trigger Modes | Instantaneous, button control, on alarm, time and date (start and stop), day of week, on event only |
| Record Mode | Fill to end of memory, cyclic, number of samples, time duration |
| Alarm | 2 user-programmable (high or low) |
| Battery | 1/2 AA lithium sulfuryl chloride rated to 302°F (150°C) |
| Material | 316L stainless steel |
| Temperature Range | -58 to 302°F (-50 to 150°C) entire logger, -94 to 572°F (-70 to 300°C) probe tip only |
| Accuracy | ±0.25°C (-70 to 30°C), ±0.1°C (-30 to 150°C), ±0.25°C (150 to 300°C) probe tip only |
| Resolution | 0.02°F (0.01°C) |
| Clock Accuracy | ± 1 minute/year |
| Communication | USB |
| Product Length | 22" (56 cm) |
| Product Width | 1.43" (36 mm) |
| Product Height | 2.3" (55 mm) |
| Product Weight | 7.3 oz (0.21 kg) |
