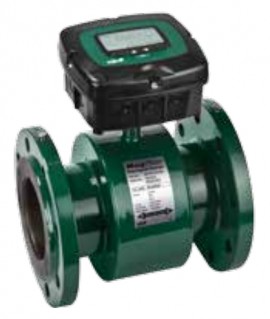

Suitable for flow measurements in all kinds of conductive liquids, and the measuring instrument is particularly suitable for flow measurements in water, wastewater, solids, and other liquids that contain particles, the sensor has no moving parts and do not affect the pressure conditions of the piping system. It is delivered with ANSI as well as in ISO standard installation lengths. It works with the flowmeter to provide very accurate measurements even over a large area.
Suitable for flow measurements in all kinds of conductive liquids, and the measuring instrument is particularly suitable for flow measurements in water, wastewater, solids, and other liquids that contain particles, the sensor has no moving parts and do not affect the pressure conditions of the piping system. It is delivered with ANSI as well as in ISO standard installation lengths. It works with the flowmeter to provide very accurate measurements even over a large area.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Flow Sensors category for similar products.
Or let's do a search and help you find what you need:
The sensor comes with a hard rubber lining for general water purpose usage.
Features
Applications
| Mounting Flanges | ANSI B 16.5 |
| Built-In Length | Standard length according to ISO 13359 |
| Accuracy | Better than ± 0,25 % |
| Ratio | 1:100 |
| Measuring Frequency | 1,25 to 2,5 Hz |
| Housing | Carbon Steel |
| Flanges | Carbon Steel |
| Measuring Pipe | Steel 1.4301 / AISI 304 |
| Lining | Hard Rubber |
| Electrodes | Steel 1,4571 / AISI 316 T |
| Coating | 3 layers Polyurethane paint, Thickness ≥ 310 µm |
| Medium Temperature | 15 to 175°F (-10 to 80°C) |
| Compact Converter Ambient Temperature | 15 to 140°F (-10 to 60°C) |
| Remote Converter Ambient Temperature | 15 to 175°F (-10 to 80°C) |
| Enclosure | IP 67, NEMA 4, Standard IP 68, NEMA 6P (10m Wc, using the Gel potting kit 579035) |
| Mounting Flanges | ANSI B 16.5 |
| Built-In Length | Standard length according to ISO 13359 |
| Accuracy | Better than ± 0,25 % |
| Ratio | 1:100 |
| Measuring Frequency | 1,25 to 2,5 Hz |
| Housing | Carbon Steel |
| Flanges | Carbon Steel |
| Measuring Pipe | Steel 1.4301 / AISI 304 |
| Lining | Hard Rubber |
| Electrodes | Steel 1,4571 / AISI 316 T |
| Coating | 3 layers Polyurethane paint, Thickness ≥ 310 µm |
| Medium Temperature | 15 to 175°F (-10 to 80°C) |
| Compact Converter Ambient Temperature | 15 to 140°F (-10 to 60°C) |
| Remote Converter Ambient Temperature | 15 to 175°F (-10 to 80°C) |
| Enclosure | IP 67, NEMA 4, Standard IP 68, NEMA 6P (10m Wc, using the Gel potting kit 579035) |
