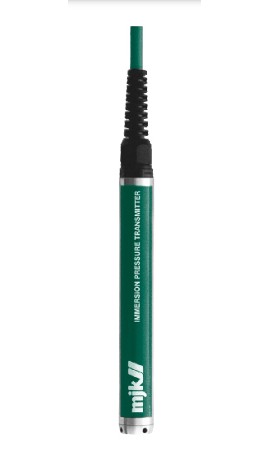

Features a small external diameter and is made of 316L stainless steel, the hydrostatic level transmitter is designed for measuring levels in water wells and drinking water tanks. It is an accurate 2-wire transmitter with a piezoresistive measuring system with direct air pressure and temperature compensation.
Features a small external diameter and is made of 316L stainless steel, the hydrostatic level transmitter is designed for measuring levels in water wells and drinking water tanks. It is an accurate 2-wire transmitter with a piezoresistive measuring system with direct air pressure and temperature compensation.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
The hydrostatic level transmitter is submersible.
Features
Applications
| Nominal Measuring Range | 0 to 100' |
| Measuring Principle | Piezoresistive (pressure) |
| Min. Programmable Range | 0 to 36' |
| Max. Programmable Range | 0 to 200' |
| Non-Standard Range | Min. 0 to 6'. / Max. 0 to 900' |
| Max. Overpressure | 10 bar/150 psi |
| Temperature Range | -15 to 150°F |
| Temp. Deviation, Zero Point | Better than ± 0.01 % /°F |
| Temperature Deviation, Full Range | Better than ± 0.008 % /°F |
| Linearity/Stability | Better than ± 0.5 % FS / ± 0.1 % FS |
| Measurement Accuracy | Better than ± 0.25 % FS @ 50 to 85°F Better than ± 0.5 % FS @ full temperature range |
| Long Time Stability | Better than ± 0.5 % FS per year |
| Materials | Housing and diaphragm made from stainless steel (AISI 316 L) |
| Supply Voltage | 10 to 30 V DC |
| Output Signal | 2-wire 4 to 20 mA (passive transmitter) |
| Cable | 2 × AWG 20 (pressure) + 5 x AWG 25 (data), shielded, PUR insulation |
| Cable Length | 115' |
| Enclosure | NEMA 6P, withstands a static pressure equal to max. overpressure |
| Test Approvals | EN61000-6-3/-4:2001, EN61000-6-1/-2:1999 |
