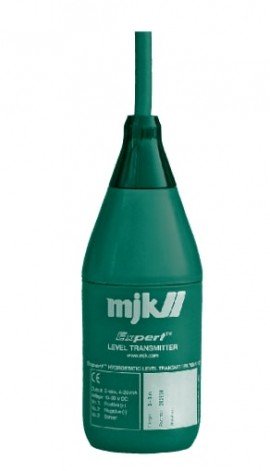

Robust and useful all-around, the hydrostatic level transmitter is equipped with a piezoresistive measuring system with high precision and direct air pressure compensation through a vent tube in the cable. It is ideal for measuring levels in storage tanks, wet wells, and pump stations in both water and wastewater plants.
Robust and useful all-around, the hydrostatic level transmitter is equipped with a piezoresistive measuring system with high precision and direct air pressure compensation through a vent tube in the cable. It is ideal for measuring levels in storage tanks, wet wells, and pump stations in both water and wastewater plants.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
| Nominal Measuring Range (ftWG) | 0 to 10' |
| Measuring Principle | Piezoresistive |
| Range | Minimum programmable: 0 to 6' Maximum programmable: 0 to 36' |
| Non-Standard Range | Minimum: 0 to 6' Maximum: 0 to 900' |
| Maximum Overpressure | 3.5 bar / 50 psi |
| Temperature Range | 15 to 150°F |
| Output Signal | 2-wire 4 to 20 mA (passive transmitter) |
| Enclosure | NEMA 6P, withstands a static pressure equal to maximum overpressure |
| Cable Length | 75' |
