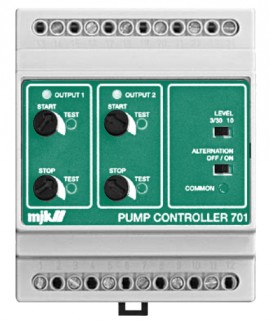

Compact instrument for accurate level control with 4 to 20 mA level input signal, the pump controller with pressure transmitter and cable bracket or accepts inputs from other pressure transmitters. When used with two pumps, it can alternate the pumps to distribute the running hours between the pumps. It is a stand-alone controller or installed in a control panel box integrated with other equipment.
Compact instrument for accurate level control with 4 to 20 mA level input signal, the pump controller with pressure transmitter and cable bracket or accepts inputs from other pressure transmitters. When used with two pumps, it can alternate the pumps to distribute the running hours between the pumps. It is a stand-alone controller or installed in a control panel box integrated with other equipment.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
The pump controller accepts a 4-20mA signal from the sensor that is proportional to the level.
Features
Applications
| Measuring Range | 4 to 20 mA |
| Supply | 110 to 130 V AC |
| Temperature | - 5 to 140°F |
| Input signal | From pressure transmitter (4 to 20 mA) |
| Accuracy | ± 1 % |
| Outputs | 2 nonpowered relays rated for 115 V AC, 4 A resistive load, (inductive 100 VA) |
| Operation | From front panel |
| Dimensions | 3.4 x 2.8 x 2.4" (h x w x d) |
| Enclosure | NEMA |
| Measuring Range | 4 to 20 mA |
| Supply | 110 to 130 V AC |
| Temperature | - 5 to 140°F |
| Input signal | From pressure transmitter (4 to 20 mA) |
| Accuracy | ± 1 % |
| Outputs | 2 nonpowered relays rated for 115 V AC, 4 A resistive load, (inductive 100 VA) |
| Operation | From front panel |
| Dimensions | 3.4 x 2.8 x 2.4" (h x w x d) |
| Enclosure | NEMA |
