Mitutoyo 547-218A Series 547 Digital Depth Gage, 0-8"

Model: 547-218A

Mitutoyo 547-218A Series 547 Digital Depth Gage, 0-8"-

Downloads: datasheet

More Mitutoyo Products

Ask an Expert

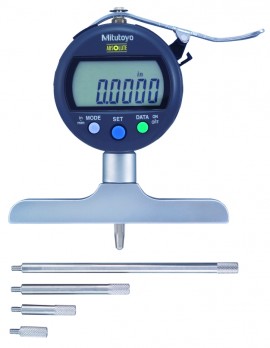

Mitutoyo 547-218A Series 547 Digital Depth Gage, 0-8"

Model: 547-218A

Digital Indicators 0-8"/200mm X .0005"/0.01mm, IDC Digimatic Depth Gage, 4" Base.

Digital Indicators 0-8"/200mm X .0005"/0.01mm, IDC Digimatic Depth Gage, 4" Base.

Your Price $635.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 547-218A Series 547 Digital Depth Gage

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 547-218A Series 547 Digital Depth Gage

Mitutoyo 547-218S Offers

Features

  • ABSOLUTE Digimatic Depth Gauge can keep track of the origin point once set for the entire life of the battery
  • Wide probing range is available with the supplied extension rod
  • Bottom surface of the base is hardened, ground and lapped for highest degree of flatness
  • With SPC data output

Mitutoyo 547-218S Specifications

Range 0-8in 0-200mm
Resolution .0005in 0.01mm
Stroke .5in
Accuracy .001in
Extension Rods 4pcs.(.5,1,2,4in)
Base WxThickness 4x.63in
Base Flatness .0002 in
Click here for complete specifications on the Mitutoyo 547-218A

What's included with the Mitutoyo 547-218S

  • Digimatic Depth Gauge
  • 4pcs.(.5,1,2,4in) Extension Rods
  • Battery: SR44 (1 pc.)
  • Manual
datasheet for the Mitutoyo 547-218A Series 547 Digital Depth Gage, 0-8"

Mitutoyo 547-218S Offers

Features

  • ABSOLUTE Digimatic Depth Gauge can keep track of the origin point once set for the entire life of the battery
  • Wide probing range is available with the supplied extension rod
  • Bottom surface of the base is hardened, ground and lapped for highest degree of flatness
  • With SPC data output
Show More...

Mitutoyo 547-218S Specifications

Range 0-8in 0-200mm
Resolution .0005in 0.01mm
Stroke .5in
Accuracy .001in
Extension Rods 4pcs.(.5,1,2,4in)
Base WxThickness 4x.63in
Base Flatness .0002 in
Click here for complete specifications on the Mitutoyo 547-218A

What's included with the Mitutoyo 547-218S

  • Digimatic Depth Gauge
  • 4pcs.(.5,1,2,4in) Extension Rods
  • Battery: SR44 (1 pc.)
  • Manual
datasheet for the Mitutoyo 547-218A Series 547 Digital Depth Gage, 0-8"
