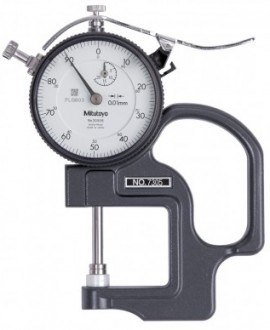

Mitutoyo 7305A Metric Dial Indicator Thickness Gauge, 0-20mm

Model: 7305A

Downloads: datasheet

Mitutoyo 7305A Metric Dial Indicator Thickness Gauge, 0-20mm

Model: 7305A

Quick and efficient means of inspection with convenient grip handle, thumb trigger and spring-loaded spindle. Measuring faces of high-grade tool steel, hardened, ground and lapped for accuracy.

Sale Price	$172.70 USD
Regular Price	$220.00 USD
Availability	1 to 2 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 7305A Metric Dial Indicator Thickness Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIDI1) for only $95.00 USD

Traceable Calibration Certificate for your 7305A Metric Dial Indicator Thickness Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIDI1) for only $95.00 USD

Mitutoyo 7305 Offers

Features

Spindle of hardened stainless steel
Direct reading 0-100 (with revolutions counter)
Micro-fine black graduations for .001" or .01mm minimum reading
Range/Resolution/Accuracy: 0 to 20mm/0.01mm/±0.025mm

Mitutoyo 7305A Specifications

Range	0 to 20mm
Graduation	0.01mm
Accuracy	±0.020 mm
Measuring Force	≤2.0 N
Indicator No.	2050SB
Max. Measuring Depth	30mm
Mass	220 g
Parallelism	5µm
Inch-Metric	Metric
Functions	Ceramic disc contact points

Click here for complete specifications on the Mitutoyo 7305A

What's included with the Mitutoyo 7305A

Metric Dial Indicator Thickness Gauge
Fitted Case

Check Points for Measuring Instruments - Thickness Gage
