The ABSOLUTE linear gauge yields accurate, precise readings. It features Digimatic output.
The ABSOLUTE linear gauge yields accurate, precise readings. It features Digimatic output.

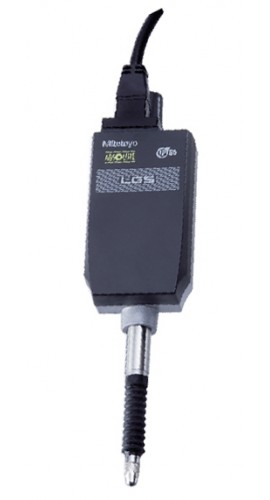

The Mitutoyo 575-303 Series 575 LGS-ABSOLUTE Linear Gauge is packed with user-friendly features. Its ABSOLUTE electrostatic capacitance type linear encoder maintains a set reference point even after being turned off. And, it has an IP66 rating, keeping it safe from contaminants on the factory floor.
Features
| Accuracy | 15 μm (20°C) |
| Resolution | 10 μm |
| Measuring Force | 1.6 N or less (contact points up); 1.8 N or less (contact points horizontal); 2 N or less (contact points down) |
| Measurement Range | 12.7 mm |
| Contact Type(s) | Carbide-tipped standard contact point (Mitutoyo 901312) |
| Operating Temperature | 32 to 104°F (0 to 40°C), 20 to 80% RH, no condensation |
| Storage Temperature | 14 to 140°F (-10 to 60°C), 20 to 80% RH, no condensation |
| Product Weight | 6.7 oz (190 g) |
