Mitutoyo 568-364-10 Digital ABS Borematic, 12 to 16 mm

Model: 568-364-10

Downloads: datasheet

Mitutoyo 568-364-10 Digital ABS Borematic, 12 to 16 mm

Model: 568-364-10

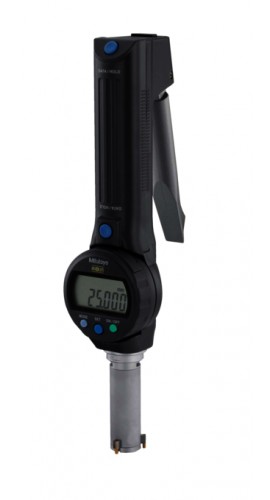

The digital ABS borematic takes measurements easily and quickly. It has titanium-coated measuring pins that give excellent durability and impact resistance. It also features a range of 12 to 16 mm and a 330° rotatable display unit for easy reading at any angle.

Your Price	$1630.00 USD
Availability	1 to 2 Weeks
Quantity	Quantity

Mitutoyo 568-364-10 Offers

The digital ABS borematic has GO/NG tolerance judgement function.

Features

TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole
Large LCD digits of 8.5 mm height for error-free reading
330-degree rotatable display unit for easy reading at any angle
The ABSOLUTE linear encoder eliminates over-speed errors
With SPC data output
Setting rings for origin point setting are optional
Can measure deep holes by attaching an optional extension rod
Measurement can be taken closer to the bottom of a blind bore
Supplied in fitted wooden case

Mitutoyo 568-364-10 Specifications

Range	12 to 16 mm
Accuracy	±5 µm
Mass	475 g
Resolution	0.001 mm or 0.00005"/0.001 mm
Measuring Method	Three-point method
Display	LCD
Battery	SR44 (1 pc.)
Battery Life	Approx. 7,000 hours
Inch-Metric	Metric

Click here for complete specifications on the Mitutoyo 568-364-10

What's included with the Mitutoyo 568-364-10

Digital ABS Borematic
Battery
Key
Box
Certificate of Inspection

datasheet for the Mitutoyo 568-364-10 Digital ABS Borematic, 12 to 16 mm
