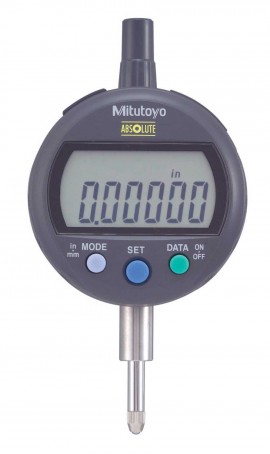

Mitutoyo 543-712-02 Digimatic Indicator, ANSI/AGD, 0.5" (12.7 mm)

Model: 543-712-02

Downloads: datasheet

Mitutoyo 543-712-02 Digimatic Indicator, ANSI/AGD, 0.5" (12.7 mm)

Model: 543-712-02

Ideal for performing general comparison measurements, this ID-C standard type digimatic indicator features large display and easy-to-use buttons with measuring functions including origin-set/preset, zero set, GO/NO-GO judgment and inch/mm conversion. Additionally, this tool features a measuring range of 0.5" (12.7 mm) and an accuracy of 0.001".

Your Price	$366.00 USD
Availability	2 to 3 Weeks3 to 4 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 543-712-02 Digimatic Indicator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIDI1) for only $95.00 USD

Traceable Calibration Certificate for your 543-712-02 Digimatic Indicator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIDI1) for only $95.00 USD

Mitutoyo 543-712-02 Offers

Features

Large, easy-to-read LCD
GO/N0-G0 judgment can be performed by setting upper and lower tolerance limits
The judgment result (GO/NO-GO) can be displayed in full-size characters
The positive/negative count resulting from the spindle's up/down movement can be toggled
Employing the abdsolute linear encoder, the ID-C always displays the spindle "absolute position" from the origin at power-on
Unlimited response speed eliminates over-speed errors
The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading
With SPC data output

Mitutoyo 543-712-02 Specifications

Range	0.5" (12.7 mm)
Resolution	0.0005" (0.01 mm)
Accuracy	0.001"
Display	LCD
Contact Point	Stem dial ³⁄₈", 4 to 48 UNF thread
Measuring Force	Less than 0.9 N
Type	ANSI/AGD
Battery	SR44, 938882
Battery Life	Approximately 5000 hours under normal use

Click here for complete specifications on the Mitutoyo 543-712-02

What's included with the Mitutoyo 543-712-02

Indicator
Inspection Certificate
Battery
Manual
