This lightweight height gauge is designed for scribing small parts. Plus, its design features stainless steel for long-lasting use.
This lightweight height gauge is designed for scribing small parts. Plus, its design features stainless steel for long-lasting use.

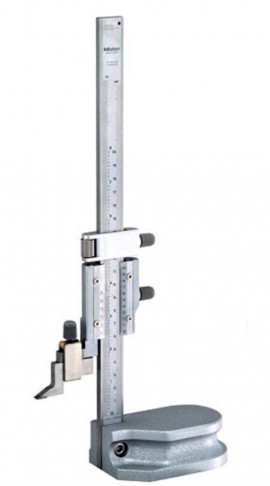

Verify the dimensions of small materials with the Mitutoyo 506-208 Series 506 Vernier Lightweight Height Gauge. The beam and slider are crafted from stainless steel, and the gauge boasts a chrome, glare-free finish. Plus, it comes with a carbide-tipped scriber and a scriber clamp, so you'll have everything you need to start measuring.
Features
Applications
| Attribute | Details |
| Digital/Analog | Analog |
| Inch-Metric | Inch/Metric |
| Delivered | Including carbide tipped scriber, scriber clamp |
| Range | 0 to 8" (0 to 200 mm) |
| Graduation | 0.001" (0.02 mm) |
| Max. Permissible Error E MPE | ±0.001" (±0.03 mm) |
| Max. Permissible Error J MPE | ±0.001" (±0.03 mm) |
| Scale adjustment | 0.59" (15 mm): 11.81" (300 mm), 17.72" (450 mm), 23.62" (600 mm) range 0.9" (25 mm): 39.37" (1000 mm) range |
| Delivered | Including scriber and scriber clamp |
| Weight | 3.1 lbs (1.4 kg) |
