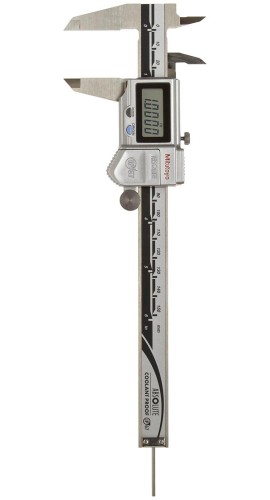

Mitutoyo 500-768-20 Absolute Coolant Proof IP67 Digimatic Caliper, 0-6" (0-150mm)

Model: 500-768-20 | UPC: 724086442867

Downloads: datasheet

Mitutoyo 500-768-20 Absolute Coolant Proof IP67 Digimatic Caliper, 0-6" (0-150mm)

Model: 500-768-20 | UPC: 724086442867

The Mitutoyo 500-768-20 Absolute Coolant Proof Digimatic Caliper has a measuring range of 0-6"/ 150mm with .0005"/ 0.01mm resolution, with ø.075in (ø1.9mm) rod depth bar.

Sale Price	$212.74 USD
Regular Price	$271.00 USD
Availability	3 to 4 Weeks4 to 5 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 500-768-20 Absolute Coolant Proof IP67 Digimatic Caliper

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICAL1) for only $95.00 USD

Traceable Calibration Certificate for your 500-768-20 Absolute Coolant Proof IP67 Digimatic Caliper

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICAL1) for only $95.00 USD

Recommended Accessories

Mitutoyo 05CZA624 Digimatic Cable with Data Button IP Type, 1m

05CZA624

Mitutoyo 06AFM380A Connection Cable with Data Button USB-ITN-A

USB-ITN-A

Mitutoyo 02AZE140A Foot Switch to Caliper to U-WAVE Connection Cable, T to A

02AZE140A

Mitutoyo 050083-10 (3in/75mm) Caliper Depth Base Attachment for 100mm/4", 150mm/6" & 200mm/8" Calipers.

050083-10

Mitutoyo 050084-10 (4in/100mm) Caliper Depth Base Attachment for 100mm/4", 150mm/6" & 200mm/8" Calipers

050084-10

Mitutoyo 050085-10 (5in/125mm) Caliper Depth Base Attachment for 300mm/12" Calipers

050085-10

Mitutoyo 500-768-20 Offers

These robust calipers allow reliable measurements in a wide range of situations.

The ABSOLUTE Digimatic Caliper IP67 offers you the following benefits:

Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
Dustproof, complies with EN60529 withstands temporary complete immersion in water without suffering any damage
Extraordinarily long battery life

Features

IP67 Waterproof rated
Automatic power-on/off
Hardened stainless steel construction with 4 way measurement, OD, ID, depth, step
Inch/Metric
Zero/ABS Key
With thumb roller
ø.075in (ø1.9mm) Depth Bar

Mitutoyo 500-768-20 Specifications

Range	0 to 6" (0 to 150mm)
Resolution	0.0005" (0.01mm)
Depth Bar	ø0.075" (ø1.9mm)
Data Output	No
Accuracy	±0.001"
Max. Response Speed	Unlimited
Battery Life	Approx. 5 years under normal use
Display	LCD
ORGIN (ABS-Zero)	Yes
Digital/Analog	Digital
Inch-Metric	Inch/Metric
Functions	With thumb roller

Click here for complete specifications on the Mitutoyo 500-768-20

What's included with the Mitutoyo 500-768-20

Fitted Plastic Case
Battery

How to Perform Maintenance on the Mitutoyo Digital Caliper

Learn how to properly care for your digital caliper by wiping it with a lint-free cloth and performing simple tests.

datasheet for the Mitutoyo 500-768-20 Absolute Coolant Proof IP67 Digimatic Caliper, 0-6" (0-150mm)

Click on a category to view a selection of compatible accessories with the Mitutoyo 500-768-20 Absolute Coolant Proof IP67 Digimatic Caliper, 0-6" (0-150mm).

Connecting Cables

Mitutoyo 05CZA624 Digimatic Cable with Data Button IP Type, 1m 05CZA624

This cable with a data out switch type, features a waterproof connection switch and a data capture button. For use with Coolant Proof Calipers and Coolant Proof Digimatic Scales.

Mitutoyo 05CZA625 SPC Digimatic Cable with Data Button IP Type, 80" (2m) 05CZA625

The Mitutoyo 05CZA625 Data Out Switch Type SPC Connecting Cable is applicable with Coolant Proof Caliper 500-68X,500-76X, 500-78X and Coolant Proof Digimatic scale units 572-61X.

Mitutoyo 02AZD790A Waterproof U-Wave Connection Cable with Output Button, 16cm (6.3") 02AZD790A

This cable connects a Digimatic Caliper to a U-Wave wireless link to a PC for storage, analysis and use in an SPC system. Measured values can be sent to the computer by pressing the Data Input Button. Cable has a length of 6.3" (16cm). For use with Mitutoyo Digimatic Calipers.

Mitutoyo 02AZE140A Foot Switch to Caliper to U-WAVE Connection Cable, T to A 02AZE140A

Enables a Digimatic Caliper not equipped with a data pushbutton to transmit measurement data over the U-WAVE wireless link to a PC for storage, analysis, and use in an SPC system.

USB Input Cables

Mitutoyo 06AFM380A Connection Cable with Data Button USB-ITN-A USB-ITN-A

This cable incorporates a data switch, so the tool is usable regardless of whether or not the measuring instrument has a switch. Is water-proof with switch.

Depth Base Attachments

Mitutoyo 050083-10 (3in/75mm) Caliper Depth Base Attachment for 100mm/4", 150mm/6" & 200mm/8" Calipers. 050083-10

The Mitutoyo 050083-10 Size 3in/75mm Depth Base Attachment is an optional accessory for Calipers. It is compatible with 100mm, 150mm, 200mm, 4,6 and 8" degree Vernier and Dial Calipers which have a depth measuring bar.

Mitutoyo 050084-10 (4in/100mm) Caliper Depth Base Attachment for 100mm/4", 150mm/6" & 200mm/8" Calipers 050084-10

The Mitutoyo 050084-10 Size 4in/100mm Depth Base Attachment is an optional accessory for Calipers. It is compatible with 100mm, 150mm, 200mm, 4,6 and 8" degree Vernier and Dial Calipers which have a depth measuring bar.

Mitutoyo 050085-10 (5in/125mm) Caliper Depth Base Attachment for 300mm/12" Calipers 050085-10

The Mitutoyo 050085-10 Size 5in/125mm Depth Base Attachment, 5"/125mm Finely grounded base surface and secure locking clamp. For use with 300mm/12" Calipers that have a depth measuring bar.
