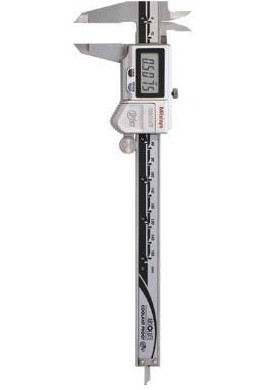

Mitutoyo 500-762-20 Absolute Coolant Proof IP67 Digimatic Caliper, 0-6" (0-150mm), SPC Output

Model: 500-762-20

Downloads: datasheet

Mitutoyo 500-762-20 Absolute Coolant Proof IP67 Digimatic Caliper, 0-6" (0-150mm), SPC Output

Model: 500-762-20

Conforming to to IP67, this Caliper can be used in workshop conditions without fear of damage from coolant, water, dust, or oil. Features Mitutoyo's ABSOLUTE measurement, meaning you don't have to reset the origin. Includes a measurement data output port to hook up the gauge to a personal computer (optional output cords sold separately).

Your Price	$321.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 500-762-20 Absolute Coolant Proof IP67 Digimatic Caliper

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICAL1) for only $95.00 USD

Traceable Calibration Certificate for your 500-762-20 Absolute Coolant Proof IP67 Digimatic Caliper

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICAL1) for only $95.00 USD

Recommended Accessories

Mitutoyo 05CZA624 Digimatic Cable with Data Button IP Type, 1m

05CZA624

Mitutoyo 05CZA625 SPC Digimatic Cable with Data Button IP Type, 80" (2m)

05CZA625

Mitutoyo 06AFM380A Connection Cable with Data Button USB-ITN-A

USB-ITN-A

Mitutoyo 02AZD790A Waterproof U-Wave Connection Cable with Output Button, 16cm (6.3")

02AZD790A

Mitutoyo 02AZE140A Foot Switch to Caliper to U-WAVE Connection Cable, T to A

02AZE140A

Mitutoyo 500-762-20 Offers

Features

Font height of 9mm for improved visibility
Easy to remove battery cap that doesn't require a screwdriver
Incredibly long battery life of 5 years due to low current integrated circuit
Easy to use with the advanced ergonomic design and only 1 button
Incorporates Mitutoyo's ABSOLUTE measurement system so there is no need to reset the origin
The automatic power-on/off function shuts down the LCD display after 20 minutes inactivity, but the ABS scale origin is unaffected
Power is restored to the display when the slider is moved
Stepped features can be measured
Can be integrated into statistical process control and measurement systems
An inspection certificate is supplied as standard (however, this cannot be used as a calibration certificate as it is undated)

Mitutoyo 500-762-20 Specifications

Range	0 to 6"
Accuracy (excluding quantizing error)	±.001" / ±0.02mm
Digital Step	0.01mm
Auto Power OFF	After 20min of non-use
Max Response Speed	Unlimited
Repeatability	0.01mm or 0.0005"/0.01mm
Battery Life	Approx. 20000 hours (5 years) under normal use
Display	LCD, Character Height 9mm
Power Supply	SR44 (1 pc)
Weight	168g

Click here for complete specifications on the Mitutoyo 500-762-20

What's included with the Mitutoyo 500-762-20

500-762-20 ABSOLUTE Coolant Proof Digimatic Caliper
Hard carrying case
Battery

How to Perform Maintenance on the Mitutoyo Digital Caliper

Learn how to properly care for your digital caliper by wiping it with a lint-free cloth and performing simple tests.

datasheet for the Mitutoyo 500-762-20 Absolute Coolant Proof IP67 Digimatic Caliper, 0-6" (0-150mm), SPC Output

Click on a category to view a selection of compatible accessories with the Mitutoyo 500-762-20 Absolute Coolant Proof IP67 Digimatic Caliper, 0-6" (0-150mm), SPC Output.

Connecting Cables

Mitutoyo 05CZA624 Digimatic Cable with Data Button IP Type, 1m 05CZA624

This cable with a data out switch type, features a waterproof connection switch and a data capture button. For use with Coolant Proof Calipers and Coolant Proof Digimatic Scales.

Mitutoyo 05CZA625 SPC Digimatic Cable with Data Button IP Type, 80" (2m) 05CZA625

The Mitutoyo 05CZA625 Data Out Switch Type SPC Connecting Cable is applicable with Coolant Proof Caliper 500-68X,500-76X, 500-78X and Coolant Proof Digimatic scale units 572-61X.

Mitutoyo 02AZD790A Waterproof U-Wave Connection Cable with Output Button, 16cm (6.3") 02AZD790A

This cable connects a Digimatic Caliper to a U-Wave wireless link to a PC for storage, analysis and use in an SPC system. Measured values can be sent to the computer by pressing the Data Input Button. Cable has a length of 6.3" (16cm). For use with Mitutoyo Digimatic Calipers.

Mitutoyo 02AZE140A Foot Switch to Caliper to U-WAVE Connection Cable, T to A 02AZE140A

Enables a Digimatic Caliper not equipped with a data pushbutton to transmit measurement data over the U-WAVE wireless link to a PC for storage, analysis, and use in an SPC system.

USB Input Cables

Mitutoyo 06AFM380A Connection Cable with Data Button USB-ITN-A USB-ITN-A

This cable incorporates a data switch, so the tool is usable regardless of whether or not the measuring instrument has a switch. Is water-proof with switch.
