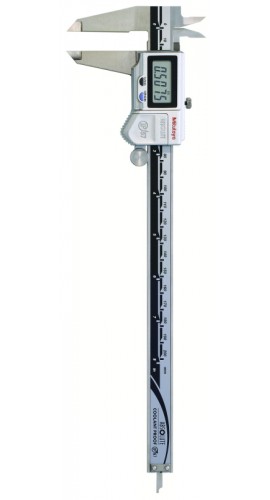

Mitutoyo 500-753-10 Coolant Proof Caliper

Model: 500-753-10

Downloads: datasheet

More Mitutoyo Products

Ask an Expert

Mitutoyo 500-753-10 Coolant Proof Caliper

Model: 500-753-10

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Mitutoyo 500-753-20 ABSOLUTE Coolant-Proof Caliper, 0 to 8"/0 to 200 mm

Model: 500-753-20

Ergonomic and durable, this caliper delivers highly accurate, four-way measurement capabilities ideal for shop floor use and workshop conditions exposed to coolant, water, dust, and oil. Additionally, this caliper features a large, easy-to-read, impact-resistant digital display and slide and jaws made of hardened stainless steel.

Learn More

Mitutoyo 500-753-10 Offers

Features

Can be used in workshop conditions exposed to coolant, water, dust or oil.
Easy to use - no need to wipe or clean the scale.
Advanced design styling.
Incorporates absolute measurement system.
Automatic power-on/off.
Data output function.
With thumb roller.
Supplied in fitted plastic case.

Technical Data:

Accuracy: Refer to the list of Specifications (excluding quantizing error)
Resolution: 0.01mm or .0005"/0.01mm
Repeatability: 0.01mm / .0005”
Display: LCD
Length standard: ABSOLUTE electromagnetic induction
Linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc./2 pcs*),938882
Battery life: Approx. 3 years under normal use
(1 year: over 300mm / 12” models)
Dust/Water protection level:IP67
*0 - 300mm model

Function:

Origin-set, Zero-setting, Automatic power on/off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories:05CZA624: SPC cable with data switch (1m / 40”) and05CZA625: SPC cable with data switch (2m / 80”)

What's included with the Mitutoyo 500-753-10

Mitutoyo 500-753-10 Coolant Proof Caliper

datasheet for the Mitutoyo 500-753-10 Coolant Proof Caliper
