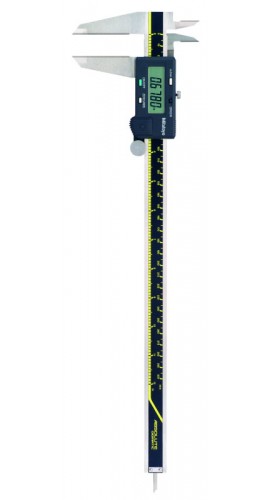

Mitutoyo 500-166-30 ABSOLUTE Digimatic Caliper

Downloads: datasheet

Includes Inside and Outside diameter carbide-tipped measuring jaws. Features the Absolute Encoder which allows direct measurements from power up.

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICAL1) for only $95.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICAL1) for only $95.00 USD

Features:

Large and clear LCD readout.
The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
Data Hold Unit (959143) is optional.
Carbide-tipped jaw type calipers are also available.
With thumb roller. Except 500-500-10, 500-501-10,500-502-10.
Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.

Technical Data

Function

Origin-set, Zero-setting, Data output, inch/mm conversion (inch/mm models ONLY)
Alarm: Low voltage, Counting value composition error

Learn how to properly care for your digital caliper by wiping it with a lint-free cloth and performing simple tests.

datasheet for the Mitutoyo 500-166-30 ABSOLUTE Digimatic Caliper

Features:

Large and clear LCD readout.
The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
Data Hold Unit (959143) is optional.
Carbide-tipped jaw type calipers are also available.
With thumb roller. Except 500-500-10, 500-501-10,500-502-10.
Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.

Technical Data
