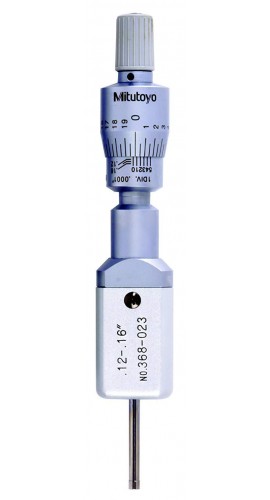

Mitutoyo 368-023 Holtest Vernier Inside Micrometer, 2-Point, .12-.16in, Inch

Model: 368-023

Downloads: datasheet

Mitutoyo 368-023 Holtest Vernier Inside Micrometer, 2-Point, .12-.16in, Inch

Model: 368-023

2-Point Holtest, Internal Micrometer, .12 - .16" Range, +/- .0001" Accuracy.

Sale Price	$1193.20 USD
Regular Price	$1520.00 USD
Availability	1 to 2 Weeks
Quantity	Quantity

Mitutoyo 368-023 Offers

These Holtests are versatile, self-centering three-point internal micrometers for the accurate and efficient direct-measurement of internal diameters. Three anvils, evenly spaced at 120° apart, contact the internal wall surfaces and find true alignment with the axis of the bore for accurate ID measurement.

Features

Two-point contacts for measurement of the inside dimension (ID) of small bores
Vernier scale in inch units for taking precise inside dimension (ID) measurements
Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
Satin chrome finish helps resist rust and reduce glare
High-grade tool steel construction for durability

Mitutoyo 368-023 Specifications

Range	.12-.16in
Accuracy	.0001in
Measurement System	Inch
Type	Two-point
Contact-point material	Carbide

Click here for complete specifications on the Mitutoyo 368-023

What's included with the Mitutoyo 368-023

Holtest Vernier Inside Micrometer
Fitted Plastic Case

datasheet for the Mitutoyo 368-023 Holtest Vernier Inside Micrometer, 2-Point, .12-.16in, Inch datasheet for the Mitutoyo 368-023 Holtest Vernier Inside Micrometer, 2-Point, .12-.16in, Inch
