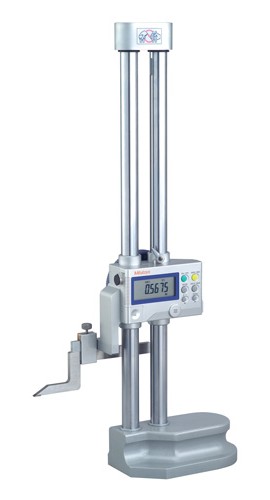

Mitutoyo 192-672-10 Height Gauge, Digimatic Multi-Function 0-24in, .0005-.0002in / 0-600mm, 0.01-0.005mm

Model: 192-672-10

Downloads: datasheet

Mitutoyo 192-672-10 Height Gauge, Digimatic Multi-Function 0-24in, .0005-.0002in / 0-600mm, 0.01-0.005mm

Model: 192-672-10

Series 192 Multi-Function Digimatic Height Gauge with SPC Data Output displays in inches or metric units within a range of 0" to 24" (0mm to 600mm), has an LCD digital readout with selectable resolution of 0.0005” (0.01mm) or 0.0002” (0.005mm).

Your Price	$3800.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Mitutoyo 192-672-10 Offers

Features

Highly versatile multi-function type
Carbide-tipped long scriber is provided
Rigid construction ensures repeatable measurement
Coarse/fine feed switching
Bi-directional touch-signal probe is an optional accessory. It can quickly and accurately measure steps, inside width, and outside width
Zero-setting, ABS/INC switching, Two presets, Probe tip diameter compensation, -/+ switching, Power ON/OFF, Data hold, Data output, inch/mm conversion

Applications

Mechanical Engineering
Metalworks
Metrology
Machining

Mitutoyo 192-672-10 Specifications

Model	Inch/Metric
Range	0-24in 0-600mm
Accuracy	±0015"
Resolution	.0005"(0.01mm) [.0002"(0.005mm) Switchable)]
Display	LCD, 7-digits, character height 11mm Max. response speed: 500mm/s
Battery	SR44 (1 pc.)
Battery life	Approx. 2000 hours under normal use
Alarm	Low voltage, Counting value composition error
Scriber	Carbide-tipped scriber (905201) and scriber clamp (901385)

Click here for complete specifications on the Mitutoyo 192-672-10

What's included with the Mitutoyo 192-672-10

Height Gauge
Battery

datasheet for the Mitutoyo 192-672-10 Height Gauge, Digimatic Multi-Function 0-24in, .0005-.0002in / 0-600mm, 0.01-0.005mm datasheet for the Mitutoyo 192-672-10 Height Gauge, Digimatic Multi-Function 0-24in, .0005-.0002in / 0-600mm, 0.01-0.005mm
