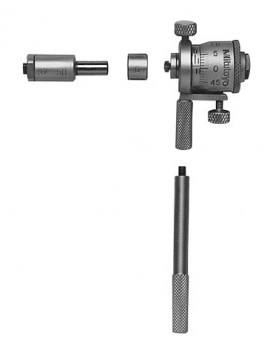

Take highly accurate inside dimensions with a single micrometer head with this mechanical interchangeable-rod type inside micrometer, featuring a 25 to 50 mm range and hardened steel measuring faces. In addition, the micrometer head is constructed with precision, balance, and durability in mind.
Take highly accurate inside dimensions with a single micrometer head with this mechanical interchangeable-rod type inside micrometer, featuring a 25 to 50 mm range and hardened steel measuring faces. In addition, the micrometer head is constructed with precision, balance, and durability in mind.
Mesure inside dimensions of different ranges of cylinders, rings, and parallel surfaces faster and easier with this interchangeable rod inside micrometer. In addition, the interchangeable rod sizes are adjustable with spacing collars, and an extension rod allows for deep bores and hole measurements.
Features
Applications
| Range | 25 to 50 mm |
| Graduation | 0.01 mm |
| Spindle Feed Error | 3 μm |
| Measuring Faces | Hardened steel |
| Travel of Micrometer Head | 7 mm |
| Remarks | With 2 rods |
| Units | Metric |
| Technology | Mechanical |
| Dimensions | 1.42 x 0.8" (36 x 20.5 mm) |
| Weight | 0.13 lbs (60 g) |
| Range | 25 to 50 mm |
| Graduation | 0.01 mm |
| Spindle Feed Error | 3 μm |
| Measuring Faces | Hardened steel |
| Travel of Micrometer Head | 7 mm |
| Remarks | With 2 rods |
| Units | Metric |
| Technology | Mechanical |
| Dimensions | 1.42 x 0.8" (36 x 20.5 mm) |
| Weight | 0.13 lbs (60 g) |
