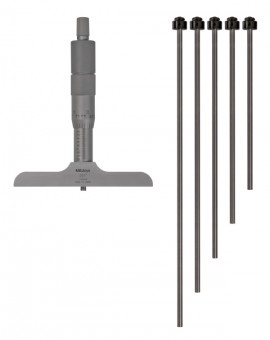

Measure a wide range of depths with high accuracy with this mechanical depth micrometer which features a Vernier scale to provide precise measurements in fine units. Additionally, this micrometer includes six extension rods and a ratchet stop mechanism to provide uniform pressure for accurate, repeatable measurements.
Measure a wide range of depths with high accuracy with this mechanical depth micrometer which features a Vernier scale to provide precise measurements in fine units. Additionally, this micrometer includes six extension rods and a ratchet stop mechanism to provide uniform pressure for accurate, repeatable measurements.
Features
Applications
| Range | 0 to 6" |
| Accuracy | ±0.00015" |
| Units | Inches |
| Graduation | 0.001" |
| Flatness | Reference surface base: 0.00008" Measuring face: 0.000012" |
| Measuring Rod Diameter | 0.157" |
| Parallelism Between Reference Face and Measuring Rod Face | [0.00016+(.00004XR/2)], R=Maximum measuring range (inch) |
| Zero point Error of Rods | 0.0002" |
| Base Size | 4 x 0.63" |
