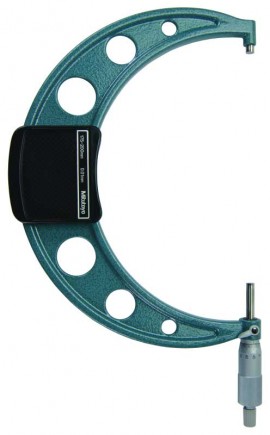

Mitutoyo 103-156 Outside Micrometers Series-103, metric, 475 to 500 mm

Model: 103-156

Downloads: datasheet

Mitutoyo 103-156 Outside Micrometers Series-103, metric, 475 to 500 mm

Model: 103-156

The Mitutoyo outside micrometer features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings.

Sale Price	$652.34 USD
Regular Price	$831.00 USD
Availability	3 to 4 Weeks
Quantity	Quantity

Mitutoyo 103-156 Offers

The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. The friction thimble models allow for constant-force measurement for single handed operation.

Features

Frame has a hammertone baked enamel finish for durability
Scale is laser etched on thimble and sleeve
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Speeder is always available for quick rotation of the spindle
With a standard bar except for 0 to 25 mm model
Supplied in a fitted plastic case

Applications

Dimension measurement
Precision inspection

Mitutoyo 103-156 Specifications

Units	Metric
Range	475 to 500 mm
Accuracy	±8 μm
Ratchet/Thimble	Ratchet stop
Mass	7.61 lbs (3450 g)
Graduation	0.01 mm
Measuring Force	10 to 15 N
Flatness	1 μm
Parallelism	7 μm or less
Technology	Mechanical
SPC Output	No
Measuring Faces	Carbide tipped

Click here for complete specifications on the Mitutoyo 103-156

What's included with the Mitutoyo 103-156

Mitutoyo 103-156 Outside Micrometers Series-103, metric, 475 to 500 mm

datasheet for the Mitutoyo 103-156 Outside Micrometers Series-103, metric, 475 to 500 mm
