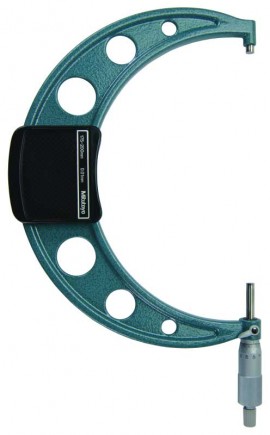

The Mitutoyo outside micrometer features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings.
The Mitutoyo outside micrometer features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings.
The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. The friction thimble models allow for constant-force measurement for single handed operation.
Features
Applications
| Units | Metric |
| Range | 250 to 275 mm |
| Accuracy | ±5 μm |
| Ratchet/Thimble | Ratchet stop |
| Mass | 3.10 lbs (1405 g) |
| Graduation | 0.01 mm |
| Measuring Force | 5 to 10 N |
| Flatness | 0.6 μm |
| Parallelism | 4 μm or less |
| Technology | Mechanical |
| SPC Output | No |
| Measuring Faces | Carbide tipped |
| Units | Metric |
| Range | 250 to 275 mm |
| Accuracy | ±5 μm |
| Ratchet/Thimble | Ratchet stop |
| Mass | 3.10 lbs (1405 g) |
| Graduation | 0.01 mm |
| Measuring Force | 5 to 10 N |
| Flatness | 0.6 μm |
| Parallelism | 4 μm or less |
| Technology | Mechanical |
| SPC Output | No |
| Measuring Faces | Carbide tipped |
