Engineered for demanding industrial inspections, this thermal camera reads a 640 x 480 detector (1280 x 960 with super-resolution) at 30 mK sensitivity and 30 Hz across -40 to 1202°F (-40 to 650°C). A 13 MP visible-light sensor, dual spotlights, and GPS aid on-site documentation. Images reach the Thermography mobile app over Ethernet or Wi-Fi, and interchangeable batteries keep crews working in the field.
Engineered for demanding industrial inspections, this thermal camera reads a 640 x 480 detector (1280 x 960 with super-resolution) at 30 mK sensitivity and 30 Hz across -40 to 1202°F (-40 to 650°C). A 13 MP visible-light sensor, dual spotlights, and GPS aid on-site documentation. Images reach the Thermography mobile app over Ethernet or Wi-Fi, and interchangeable batteries keep crews working in the field.

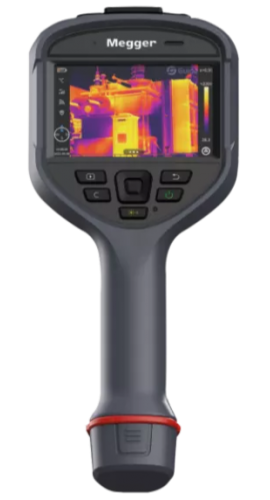

The flagship of Megger's TC line, the TC640 is built for professionals who need high-resolution thermal imaging and detailed documentation. A 4.3" touchscreen, 15 colour palettes, and a 13 MP visible camera with dual spotlights make faults easy to see and capture, while GPS and an electronic compass record location data. Over-the-air updates, Wi-Fi, Ethernet, and SD expansion to 256 GB keep data moving, and interchangeable batteries (two included) run through long inspections. Its 640 x 480 detector and 30 Hz frame rate resolve fast thermal events from -40 to 1202°F (-40 to 650°C).
Features
Applications
| Imaging and Optical | |
| Detector Type | Uncooled VOx microbolometer |
| IR Resolution | 640 x 480 (1280 x 960 super resolution) |
| Thermal Sensitivity | 30 mK (NETD) |
| Field of View | 25° x 19° |
| Frame Rate | 30 Hz |
| Focus | Manual and autofocus |
| Spectral Range | 7.5 to 14 µm |
| Measurement | |
| Temperature Range | -40 to 1202°F (-40 to 650°C), auto-switching |
| Accuracy | ±2°C or ±2%, whichever is greater |
| Display and Storage | |
| Display | 4.3" LCD touchscreen, 800 x 480 |
| Visible Camera | 13 MP |
| Color Palettes | 15 |
| Internal Storage | 64 GB built-in, expandable via SD card up to 256 GB |
| Power and Connectivity | |
| Battery Life | Up to 4 hours, interchangeable battery (2 included) |
| Connectivity | Wi-Fi, USB Type-C, and Ethernet |
| General | |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| IP Rating | IP54 |
| Drop Rating | 6.56' (2 m) |
| Dimensions | 11.50 x 4.92 x 4.92" (292 x 125 x 125 mm) |
| Weight | 2.6 lbs (1.2 kg) |
