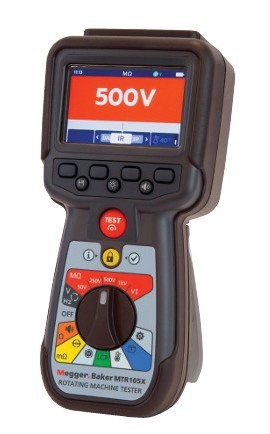

Megger MRT105X Rotating Machine Tester with bluetooth, 100 Ω to 200 GΩ, 1000 V

Model: MTR105X | Order No: 1017-030

NEW!
Megger MRT105X Rotating Machine Tester with bluetooth, 100 Ω to 200 GΩ, 1000 V-

Downloads: datasheet

More Megger Products

Ask an Expert

Megger MRT105X Rotating Machine Tester with bluetooth, 100 Ω to 200 GΩ, 1000 V

Model: MTR105X | Order No: 1017-030

The MTR105X is a handheld rotating machine tester for motors and generators. It combines insulation, low-resistance, continuity, capacitance, inductance, temperature, and rotation checks in one portable instrument, with Bluetooth connectivity added for CertSuite Asset data streaming and reporting.

The MTR105X is a handheld rotating machine tester for motors and generators. It combines insulation, low-resistance, continuity, capacitance, inductance, temperature, and rotation checks in one portable instrument, with Bluetooth connectivity added for CertSuite Asset data streaming and reporting.

Your Price $2940.00 USD
Availability 2 to 3 Weeks
Quantity

Megger MTR105X Offers

The MTR105X combines several common motor-test functions into one handheld device, reducing setup time and simplifying field or workshop diagnostics.

For reliability teams, it supports preventive maintenance by helping identify insulation degradation, winding imbalance, poor connections, and rotation issues before they lead to costly failures. Megger specifically highlights diagnostics such as temperature compensation and polarisation index testing for identifying motor problems before breakdowns.

For reporting and asset management, the MTR105X Bluetooth connection is the key advantage over the standard MTR105. It can stream results to CertSuite Asset, store results against specific motors or generators, support repeat testing, and help trend results over time. It can also still be used fully as a standalone tester without CertSuite.

Features

  • Resistance range 100 Ω up to 200 GΩ
  • Supports PI, DAR, Timed and Temperature Compensation
  • Stabilised insulation test voltage with -0%/+2% ±2 V accuracy, including selectable nonstandard test voltages from 10 V to 999 V
  • Adjustable resistance limit buzzer settings for insulation and continuity testing
  • Measures AC 10 mV up to 1000 V; DC 0 to 1000 V; TRMS (15 Hz up to 400 Hz)
  • Tests three-phase supply, phase sequence, and motor direction of rotation, with results displayed on screen
  • Single automatic resistance range from 0.01 Ω to 1.0 MΩ
  • Automatic test current selection, including 200 mA continuity testing up to 4 Ω
  • Lead resistance compensation (NULL) operates up to 10 Ω of resistance
  • Selectable auto/manual testing with single-direction or bi-directional test modes
  • Automatic inductive, capacitive, and resistive testing, with selectable inductance/capacitance modes and 120 Hz or 1000 Hz test frequency
  • Full colour graphic display
  • Guard terminal, to eliminate any surface leakage current
  • Detachable test leads with interchangeable clips and probes for different applications
  • CertSuite LITE and BLE enable real-time testing and reporting with onboard storage and secure wireless connectivity
  • Stores up to 256 motor results with date/time stamps and can download results to USB for reporting
  • Environmental protection to IP54, providing protection against moisture and dust ingress, including the battery and fuse compartment
  • A ‘rubber over moulding’ combines a tough shock absorbing outer protection with excellent grip, on a strong modified ABS housing, providing a robust case
  • Rechargeable batteries with mains charger kit option
  • Designed for CAT III 600 V environments with live-voltage detection and test inhibit to reduce risk when connected to energised circuits

Applications

  • Testing, troubleshooting, commissioning, and maintaining electric motors and generators
  • Checking motor winding insulation
  • Comparing phase-to-phase winding condition
  • Verifying low-resistance connections

Megger MTR105X Specifications

Insulation resistance
Accuracy 50 V: 0.35 oz (10 g)Ω ±2% ±2 digits ±4.0% per GΩ
100 V: 0.71 oz (20 g)Ω ±2% ±2 digits ±2.0% per GΩ
250 V: 1.76 oz (50 g)Ω ±2% ±2 digits ±0.8% per GΩ
500 V: 3.53 oz (100 g)Ω ±2% ±2 digits ±0.4% per GΩ
1000 V: 7.05 oz (200 g)Ω ±2% ±2 digits ±0.2% per GΩ
Polarisation index (PI) 10 min / 1 minute ratio
Dielectric absorption ratio (DAR) User configurable 15 s or 30 s t1 start time with t2 fixed at 60 s
Guard terminal performance <5% error at 500 kΩ parallel circuit resistance with 100' (100 m)Ω load
Resolution 0.1 kΩ
Short circuit/charge current 2 mA 0% -50% (IEC61557-2)
Terminal voltage accuracy -0%, 2%, ±2 V
Test current 1 mA at min. pass value of insulation to a max. of 2 mA
Operation range 0.1' (0.1 m)Ω to 0.04 oz (1 g)Ω (IEC61557-2)
Leakage current display 0.1 uA resolution 10% (±3 digits)
Voltage display ±3%, ±2 digits, ±0.5% of rated voltage
Continuity
Measurement 0.01 Ω to 1' (1 m)Ω
0 to 1000 kΩ analogue scale
Accuracy ±3%, ±2 digits (0 to 99.9 Ω)
±5%, ±2 digits (100 Ω to 500 kΩ)
Test current 200 mA (0 mA 20 mA)
0.01 Ω to 4 Ω
Polarity Single or Dual (factory default) polarity
Lead resistance Null up to 10 Ω
Selectable current limit 20 mA and 200 mA
Capacitance
Range 0.1 nF to 1 mF
Accuracy ±5.0%, ±2 digits (1 nF to 10 μF)
Voltmeter
Range DC: 0 to 1000 V
AC: 10 mV to 1000 V
TRMS sinusoidal (15 Hz to 400 Hz)
Accuracy DC: ±2%, ±2 digits (0 to 1000 V)
AC: ±2%, ±2 digits (10 mV to 1000 V TRMS)
Frequency range 15 to 400 Hz (50 mV to 1000 V)
Frequency resolution 0.1 Hz
Frequency accuracy ±0.5%, ±1 digit
Diode Test Diode test accuracy: ±2%, ±2 digits
0.01 V to 3 V
Display range 0 V to 3 V
Temperature measurement and compensation
Thermocouple Type T (Type K and Type J)
Thermocouple range 4 to 392°F (-20 to 200°C)
Instrument range 4 to 1832°F (-20 to 1000°C)
Instrument resolution 0.18°F (0.1°C)
Instrument accuracy ±1.8°F (±1.0°C), ±20 digits
Basic accuracy stated assumes forward and reverse measurements.
DLRO four wire Kelvin low resistance
Test current 200 mA DC
Range 1 mΩ to 10 Ω
Resolution 0.01 mΩ
Accuracy ±0.25% rdg. ±10 digits
Accuracy stated includes forward and reverse measurements.
Inductance
Instrument accuracy 1 H: ±(0.7% +(Lx/10000)% 5 digits), 1 kHz
200 mH: ±(1.0% +(Lx/10000)% 5 digits), 120 Hz
200 mH: ±(0.7% +(Lx/10000)% 5 digits), 1 kHz
20 mH: ±(2.0% +(Lx/10000)% 5 digits), 120 Hz
20 mH: ±(1.2% +(Lx/10000)% 5 digits), 1 kHz
2 mH: ±(2.0% +(Lx/10000)% 5 digits), 1 kHz only
Results storage
Storage capacity 256 motor results
Date/time stamped
Data download USB Type A (USB Mass Storage Device)
Power
Battery 6 x IEC HR6 1.2 V NiMH fitted
Optional: 6 x IEC LR6 1.5 V Alkaline (AA)
Optional: IEC FR6 1.5 V Lithium (LiFeS2)
Battery life 10 motors per complete suite of tests at 100 V into 100 mΩ
IEC61557-2 test cycle: 1200 insulation tests with duty cycle of 5 s testing on 25 s standby @ 500 V into 0.5 mΩ
IEC61557-4 test cycle: 1200 continuity tests with duty cycle of 5 s testing on 25 s standby on 1 Ω resistance
Battery charging Mains battery charger kit.
Fuse x2 500 mA (FF) 1000 V, 1.26 x 0.24" (32 x 6 mm) ceramic fuse, high break capacity HBC, 30 kA minimum.
Glass fuses must not be installed.
Safety
Safety protection IEC61010-1 CAT III 600 V
EMC
EMC Industrial IEC61326
FCC ID: WAP3026
IC: 7922 A-3026
Environment
Temperature coefficient <0.056% per°F (<0.1% per°C) up to 0.04 oz (1 g)Ω
Operating temperature range 14 to 122°F (-10 to 50°C)
Storage temperature range -13 to 122°F (-25 to 50°C)
Humidity 90% RH at 104°F (40°C) max.
Calibration temperature 68°F (20°C)
Maximum altitude 9843' (3000 m)
IP rating IP54
Physical
Display Full LCD colour screen with user configurable backlight
Languages English, French, German and Spanish.
Dimensions 8.98 x 4.1 x 2.95" (228 x 105 x 75 mm)
Weight 2.02 lbs (0.93 kg)
Click here for complete specifications on the Megger MTR105X

What's included with the Megger MTR105X

  • Rotating Machine Tester
  • Hook Strap Assembly
  • Temperature Probe
  • 3 x Grabber Clips
  • 3 x 0.16" (4 mm) Test Leads
  • 3 x Test Probes
  • 2 x Kelvin Clip Leads
  • 4 x Right Angled Connectors
  • 2-Core Cable
  • USB Memory Stick
  • Carrying Case
  • 6 X AA Alkaline Batteries
  • MTR105 Calibration Certificate
Brochure Megger MTR105X User Guide datasheet for the Megger MRT105X Rotating Machine Tester with bluetooth, 100 Ω to 200 GΩ, 1000 V

Megger MTR105X Offers

The MTR105X combines several common motor-test functions into one handheld device, reducing setup time and simplifying field or workshop diagnostics.

For reliability teams, it supports preventive maintenance by helping identify insulation degradation, winding imbalance, poor connections, and rotation issues before they lead to costly failures. Megger specifically highlights diagnostics such as temperature compensation and polarisation index testing for identifying motor problems before breakdowns.

For reporting and asset management, the MTR105X Bluetooth connection is the key advantage over the standard MTR105. It can stream results to CertSuite Asset, store results against specific motors or generators, support repeat testing, and help trend results over time. It can also still be used fully as a standalone tester without CertSuite.

Features

  • Resistance range 100 Ω up to 200 GΩ
  • Supports PI, DAR, Timed and Temperature Compensation
  • Stabilised insulation test voltage with -0%/+2% ±2 V accuracy, including selectable nonstandard test voltages from 10 V to 999 V
  • Adjustable resistance limit buzzer settings for insulation and continuity testing
  • Measures AC 10 mV up to 1000 V; DC 0 to 1000 V; TRMS (15 Hz up to 400 Hz)
  • Tests three-phase supply, phase sequence, and motor direction of rotation, with results displayed on screen
  • Single automatic resistance range from 0.01 Ω to 1.0 MΩ
  • Automatic test current selection, including 200 mA continuity testing up to 4 Ω
  • Lead resistance compensation (NULL) operates up to 10 Ω of resistance
  • Selectable auto/manual testing with single-direction or bi-directional test modes
  • Automatic inductive, capacitive, and resistive testing, with selectable inductance/capacitance modes and 120 Hz or 1000 Hz test frequency
  • Full colour graphic display
  • Guard terminal, to eliminate any surface leakage current
  • Detachable test leads with interchangeable clips and probes for different applications
  • CertSuite LITE and BLE enable real-time testing and reporting with onboard storage and secure wireless connectivity
  • Stores up to 256 motor results with date/time stamps and can download results to USB for reporting
  • Environmental protection to IP54, providing protection against moisture and dust ingress, including the battery and fuse compartment
  • A ‘rubber over moulding’ combines a tough shock absorbing outer protection with excellent grip, on a strong modified ABS housing, providing a robust case
  • Rechargeable batteries with mains charger kit option
  • Designed for CAT III 600 V environments with live-voltage detection and test inhibit to reduce risk when connected to energised circuits

Applications

  • Testing, troubleshooting, commissioning, and maintaining electric motors and generators
  • Checking motor winding insulation
  • Comparing phase-to-phase winding condition
  • Verifying low-resistance connections
Show More...

Megger MTR105X Specifications

Insulation resistance
Accuracy 50 V: 0.35 oz (10 g)Ω ±2% ±2 digits ±4.0% per GΩ
100 V: 0.71 oz (20 g)Ω ±2% ±2 digits ±2.0% per GΩ
250 V: 1.76 oz (50 g)Ω ±2% ±2 digits ±0.8% per GΩ
500 V: 3.53 oz (100 g)Ω ±2% ±2 digits ±0.4% per GΩ
1000 V: 7.05 oz (200 g)Ω ±2% ±2 digits ±0.2% per GΩ
Polarisation index (PI) 10 min / 1 minute ratio
Dielectric absorption ratio (DAR) User configurable 15 s or 30 s t1 start time with t2 fixed at 60 s
Guard terminal performance <5% error at 500 kΩ parallel circuit resistance with 100' (100 m)Ω load
Resolution 0.1 kΩ
Short circuit/charge current 2 mA 0% -50% (IEC61557-2)
Terminal voltage accuracy -0%, 2%, ±2 V
Test current 1 mA at min. pass value of insulation to a max. of 2 mA
Operation range 0.1' (0.1 m)Ω to 0.04 oz (1 g)Ω (IEC61557-2)
Leakage current display 0.1 uA resolution 10% (±3 digits)
Voltage display ±3%, ±2 digits, ±0.5% of rated voltage
Continuity
Measurement 0.01 Ω to 1' (1 m)Ω
0 to 1000 kΩ analogue scale
Accuracy ±3%, ±2 digits (0 to 99.9 Ω)
±5%, ±2 digits (100 Ω to 500 kΩ)
Test current 200 mA (0 mA 20 mA)
0.01 Ω to 4 Ω
Polarity Single or Dual (factory default) polarity
Lead resistance Null up to 10 Ω
Selectable current limit 20 mA and 200 mA
Capacitance
Range 0.1 nF to 1 mF
Accuracy ±5.0%, ±2 digits (1 nF to 10 μF)
Voltmeter
Range DC: 0 to 1000 V
AC: 10 mV to 1000 V
TRMS sinusoidal (15 Hz to 400 Hz)
Accuracy DC: ±2%, ±2 digits (0 to 1000 V)
AC: ±2%, ±2 digits (10 mV to 1000 V TRMS)
Frequency range 15 to 400 Hz (50 mV to 1000 V)
Frequency resolution 0.1 Hz
Frequency accuracy ±0.5%, ±1 digit
Diode Test Diode test accuracy: ±2%, ±2 digits
0.01 V to 3 V
Display range 0 V to 3 V
Temperature measurement and compensation
Thermocouple Type T (Type K and Type J)
Thermocouple range 4 to 392°F (-20 to 200°C)
Instrument range 4 to 1832°F (-20 to 1000°C)
Instrument resolution 0.18°F (0.1°C)
Instrument accuracy ±1.8°F (±1.0°C), ±20 digits
Basic accuracy stated assumes forward and reverse measurements.
DLRO four wire Kelvin low resistance
Test current 200 mA DC
Range 1 mΩ to 10 Ω
Resolution 0.01 mΩ
Accuracy ±0.25% rdg. ±10 digits
Accuracy stated includes forward and reverse measurements.
Inductance
Instrument accuracy 1 H: ±(0.7% +(Lx/10000)% 5 digits), 1 kHz
200 mH: ±(1.0% +(Lx/10000)% 5 digits), 120 Hz
200 mH: ±(0.7% +(Lx/10000)% 5 digits), 1 kHz
20 mH: ±(2.0% +(Lx/10000)% 5 digits), 120 Hz
20 mH: ±(1.2% +(Lx/10000)% 5 digits), 1 kHz
2 mH: ±(2.0% +(Lx/10000)% 5 digits), 1 kHz only
Results storage
Storage capacity 256 motor results
Date/time stamped
Data download USB Type A (USB Mass Storage Device)
Power
Battery 6 x IEC HR6 1.2 V NiMH fitted
Optional: 6 x IEC LR6 1.5 V Alkaline (AA)
Optional: IEC FR6 1.5 V Lithium (LiFeS2)
Battery life 10 motors per complete suite of tests at 100 V into 100 mΩ
IEC61557-2 test cycle: 1200 insulation tests with duty cycle of 5 s testing on 25 s standby @ 500 V into 0.5 mΩ
IEC61557-4 test cycle: 1200 continuity tests with duty cycle of 5 s testing on 25 s standby on 1 Ω resistance
Battery charging Mains battery charger kit.
Fuse x2 500 mA (FF) 1000 V, 1.26 x 0.24" (32 x 6 mm) ceramic fuse, high break capacity HBC, 30 kA minimum.
Glass fuses must not be installed.
Safety
Safety protection IEC61010-1 CAT III 600 V
EMC
EMC Industrial IEC61326
FCC ID: WAP3026
IC: 7922 A-3026
Environment
Temperature coefficient <0.056% per°F (<0.1% per°C) up to 0.04 oz (1 g)Ω
Operating temperature range 14 to 122°F (-10 to 50°C)
Storage temperature range -13 to 122°F (-25 to 50°C)
Humidity 90% RH at 104°F (40°C) max.
Calibration temperature 68°F (20°C)
Maximum altitude 9843' (3000 m)
IP rating IP54
Physical
Display Full LCD colour screen with user configurable backlight
Languages English, French, German and Spanish.
Dimensions 8.98 x 4.1 x 2.95" (228 x 105 x 75 mm)
Weight 2.02 lbs (0.93 kg)
Click here for complete specifications on the Megger MTR105X

What's included with the Megger MTR105X

  • Rotating Machine Tester
  • Hook Strap Assembly
  • Temperature Probe
  • 3 x Grabber Clips
  • 3 x 0.16" (4 mm) Test Leads
  • 3 x Test Probes
  • 2 x Kelvin Clip Leads
  • 4 x Right Angled Connectors
  • 2-Core Cable
  • USB Memory Stick
  • Carrying Case
  • 6 X AA Alkaline Batteries
  • MTR105 Calibration Certificate
Brochure Megger MTR105X User Guide datasheet for the Megger MRT105X Rotating Machine Tester with bluetooth, 100 Ω to 200 GΩ, 1000 V
