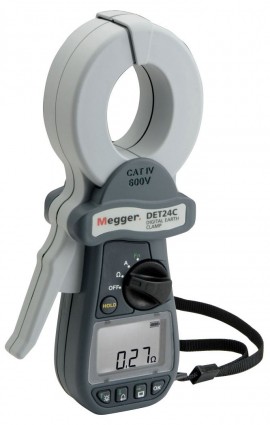

Megger DET24C Clamp-On Ground Tester, 0.05 to 1500 Ω

Model: DET24C | Order No: 1007-331 | UPC: 5036175232989

Megger DET24C Clamp-On Ground Tester, 0.05 to 1500 &ohm;-

Downloads: datasheet manual

Megger DET24C Clamp-On Ground Tester, 0.05 to 1500 Ω

Model: DET24C | Order No: 1007-331 | UPC: 5036175232989

Offering a true RMS AC current measurement, this digital clamp induces a test current into earth systems and measures ground resistance in multi-ground installations without needing to disconnect the ground. Featuring an elliptical clamp shape, this design offers access to cables and earth straps in constrained areas.

Your Price	$2480.00 USD
Availability	5 to 6 Weeks6 to 7 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your DET24C Clamp-On Ground Tester

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIET1) for only $205.00 USD

Traceable Calibration Certificate for your DET24C Clamp-On Ground Tester

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIET1) for only $205.00 USD

Megger DET24C Offers

Ensuring the job is a breeze, users can easily avoid dirt build-up thanks to the clamp's flat core ends and use the built-in filter function offering increased noise immunity in electrically noisy environments. Operation in dark and restricted areas is facilitated by a display with a backlight and an audible tone associated with the hold key.

Features

Elliptical clamp shape improves access to earth cables and straps up to 1.9" (50 mm)
Low maintenance flat jaw interface
Measures ground resistance from 0.05 to 1500 Ω
Bluetooth® stored test results transfer to PC
Advanced memory functionality with download
Megger PowerDB and PowerDB Lite™ compatible
Measures true RMS ground leakage current from 0.5 mA RMS to 35 A RMS
CAT IV 600 V safety rating
Auto-current measurement safety feature
Memory to record and view results
Automatic self calibration
Auto-ranging
High and low alarms
Real time clock for date and time stamping of results
Backlit LCD

Applications

Buildings, pylons and RF transmitter sites without system disconnection
Inspection and verification of lightning protection systems
Any installation where a current loop can be generated

Megger DET24C Specifications

Ground Resistance
0.05 to 0.99 Ω	Resolution: 0.01 Ω Intrinsic range: ±1.5% ±0.05 Ω
1.00 to 9.99 Ω	Resolution: 0.01 Ω Intrinsic range: ±1.5% ±0.1 Ω
10 to 99.9 Ω	Resolution: 0.1 Ω ±2% Intrinsic range: ±0.5 Ω
100.0 to 199.9 Ω	Resolution: 0.1 Ω ±5% Intrinsic range: ±1 Ω
200 to 400 Ω	Resolution: 1 Ω ±10% Intrinsic range: ±10 Ω
400 to 600 Ω	Resolution: 1 Ω ±10% Intrinsic range: ±10 Ω
600 to 1200 Ω	Resolution: 10 Ω Intrinsic range: ±20%
1200 to 1500 Ω	Resolution: 10 Ω Intrinsic range: ±35%
Current Range
0.5 to 0.99 mA	Resolution: 0.01 mA Intrinsic Certainty: ±2% ±0.05 mA
1.00 to 9.99 mA	Resolution: 0.01 mA Intrinsic certainty: ±2% ±0.05 mA
10.0 to 99.9 mA	Resolution: 0.1 mA Intrinsic certainty: ±2% ±0.1 mA
100 to 999 mA	Resolution: 1 mA Intrinsic Certainty: ±2% ±1 mA
1.00 to 9.99 A	Resolution: 0.01 A Intrinsic certainty: ±2% ±0.01 A
10.0 to 35.0 A	Resolution: 0.1 A Intrinsic certainty: ±2% ±0.1 A
Alarm Settings
Threshold 1	Range: 1 to 1500 Ω Resolution: 1 Ω
Threshold 2	Range: 1 to 1500 Ω Resolution: 1 Ω
General Specifications
Range	Selection: Automatic within each mode
Sampling Time	<1 second
Function	Hold: Yes with visual indicator Alarm: Yes with visual indicator
Alarm/Warning	Buzzer: Yes
Temperature Range	Operating: -4 to 122°F (-20 to 50°C), <85% RH Storage: -40 to 140°F (-40 to 60°C), <75% RH
Maximum Jaw Opening	1.5" (39 mm)
Maximum Jaw Inner Dimensions	1.5 x 2.16" (39 mm x 55 mm)
IP Rating	IP30 with jaws closed
Safety	EN 61010-2-032 CATIV 600 V Pollution degree 2
EMC	Class B Compliant, IEC 61326, BSEN 61326
Dimensions	9.7 x 4.4 x 1.9" (248 x 114 x 49 mm)
Weight	2.17 lbs (985 g)

Click here for complete specifications on the Megger DET24C

What's included with the Megger DET24C

Clamp-On Ground Tester
Calibration Check
Carrying Strap (Wrist Loop)
Carrying Case
4 x AA Alkaline Battery
User Guide CD-ROM

Webinar: How Ground Testing Keeps Us Safe with Megger

Ground systems are integral because of the protection and safety it offers to the public and the electrical equipment we use every day. These systems need to be monitored and maintained to ensure their reliability during normal conditions, unexpected faults, and to prevent cascading failures. We teamed up with Megger for this short webinar on Ground Testing, where we cover: • How Ground Testing keeps us safe • Ground Testing theory • Step Potential and Touch Potential • Soil Resistivity – testing for new installations • Electrode & Earth Resistance – testing for maintenance • Attached Rod Technique – testing without disconnecting • Stakeless Electrode Test – benefits of clamps • Testing in electrically noisy environments
