Quickly inspect various types of equipment for partial discharge signals with this MPD scan DIS kit, helping you avoid expensive outages in MV and HV plants. This kit comes with an HFCT SC40 sensor, a parabolic receiver, a function tester, Bluetooth headphones, a USB stick, a USB cable, a transport case, and reporting software.
Quickly inspect various types of equipment for partial discharge signals with this MPD scan DIS kit, helping you avoid expensive outages in MV and HV plants. This kit comes with an HFCT SC40 sensor, a parabolic receiver, a function tester, Bluetooth headphones, a USB stick, a USB cable, a transport case, and reporting software.
Lightweight, robust, and portable, this MPD scan offers simple operations and is controlled via the three soft keys and the intuitive touch display. In addition, this PD Scan features auto-recognition of the connected external sensors to prevent operation malfunction and bothersome browsing through individual screens.
Eliminate the need to inconveniently rename the folder for different test objects with this MPD Scan's QR code scanner that takes over the switchgear/asset data. In addition, the sensor is connected directly to this MPD Scan for data to be stored within test files, eliminating the need for manually adding them later during the reporting stage.
Features
Avoid partial discharge problems with a smile
Defects in medium and high voltage systems not only require costly repairs, but also can lead to failures of entire network sections with corresponding consequences. Therefore, it is in the interest of all network operators to recognize signs of impending defects as early as possible and to be able to take appropriate countermeasures on time.

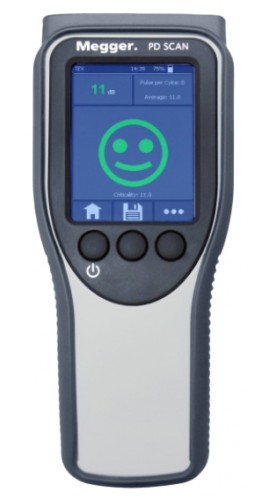

With the PD Scan, Megger offers a lightweight, robust and portable PD scanner that can quickly inspect various type of equipment for partial discharge signals.
Smiley faces will give you feedback about the condition of the asset.
Five good reasons why you should perform online PD measurements on MV plants with the PD Scan
Say goodbye to maloperation
One of the goals of the development of this handy device was to minimize the number of connections. All in all, there are only two interfaces on the device that are responsible for everything. This was made possible thanks to the smart auto-recognition of the connected sensors. Faulty measurements due to operator error are a thing of the past.
Intuitive operation, just like a smartphone
Not only does the auto-recognition of the sensors simplifies the handling of the device, the end user will also be pleased about the simplicity of operation and presentation of the measurement results.
This PD Scan can be operated intuitively via both soft-keys and touchscreen.
Using functions such as short or long press on the display enables shortcuts within the software and saves the user from bothersome browsing through the individual menus. The user can fully concentrate on the more important measuring!
If the condition is okay, you will see a smile
The user is also supported with the presentation of the measurement results. Measurement data is evaluated automatically, and feedback about the condition of the asset is provided visually by means of a smiley face and other ways. If the customer wishes other trending limits for the interpretation of the data, this can simply be individually customized.
An indispensable function of the device is the phase pattern representation, so-called PRPD pattern. By means of this view, the user can clearly identify whether the measured data is due to partial discharges or simply noise – a big but decisive difference.
Did you know?
It is often forgotten that temperature and humidity can have a significant impact on the partial discharge activity. It is therefore essential that a temperature and humidity measurement must be made for each single measurement. We have simplified this for you. Simply connect the temperature and humidity sensor to the PD Scan (it is included with the delivery of the unit), then press "store measurement data" and you are done.
Pictures speak louder than words
Nothing is nicer than when you have everything with you. Once defects have been identified with the PD Scan, then pictures can be taken using the unit‘s integrated camera. Thus, all data is securely stored in one location and can easily be included in the final report.
In addition to the image capturing functionality, the camera can also be used as a QR code scanner. This functionality saves on-the-spot tedious renaming of folders as switchgear data can be taken over directly.
Simple but detailed
Nowadays, test reports are indispensable, either as evidence for the utility or as a measurement report from a service provider. The included MeggerBook RE software gives you the full flexibility in report establishment. Detailed reports can be made in the blink of an eye. Measured data can be displayed in clear, tabular formats and images taken with the built-in camera (or from other locations) can easily be added to it and commented on.
HFCT sensor
This PD Scan can also be used for PD detection in medium voltage cables. This permits you to get a quick overview of the condition of the cables and offline PD measurements can thereafter be scheduled. For this purpose, the detachable HFCT sensor simply has to be connected around the earth screen of the cable and connected to the device.
Applications
| TEV Sensors (internal and C900-PD) | Measurement range: -10 to 80 dBmV Bandwidth: 2 to 80 MHz Resolution: 1 dBmV Accuracy: ±1 dBmV Maximum number of pulses per cycle: >1226 Minimum level for pulse counter: 10 dBmV |
| Acoustic Sensors (internal, AA PR400, AA FR130) | Measurement range: -10 to 70 dBμV Resolution: 1 dB Accuracy: ±1 dBmV/<±10 Converter centre frequency: 30, 40 and 80 kHz Laser (AA PR400 only): Class 2 (maximum 1 mW) |
| Function Tester FC1 | Battery transmitted TEV level: Lithium button cell (CR1216/3 V, 25 mAh) 25 dB ±5 dB |
| HFCT Sensors (SC40) | Split-core: Yes Measurement range: -10 to 80 dB Bandwidth: 100 kHz to 20 MHz Resolution: 1 dB Accuracy: ±1 dB/ <±10 Transfer impedance: ca. 4 Ω Input resistance: 50 Ω Maximum number of pulses per cycle: >1226 Operating temperature: -4 to 131°F (-20 to 55°C) Application area: Indoor Dimensions: 3.35 x 3.66 x 0.87" (85 x 93 x 22 mm) Inner diameter: 1.57 x 0.87" (40 x 22 mm) Weight: 8.82 oz (250 g) |
| Display | 3.5" (88.9 mm) touch display, 320 x 240 pixels |
| Interfaces | Lemo (external sensors) USB type C (charging, headphones, PC) Bluetooth® |
| Temperature | Operating: 14 to 131°F (-10 to 55°C) Storage: -4 to 158°F (-20 to 70°C) |
| Relative Humidity | 93% at 86°F/30°C (non-condensing) |
| Power Supply | Internal battery: Li-Ion 3.6 V/3.35 Ah Charger: Input voltage 90 to 264 V, 50/60 Hz Operating time: >8 hours Charging time: ±2 hours |
| IP Protection Class (in accordance with IEC 60529 [DIN VDE 0470-1]) | IP54 |
| Dimensions | 8.7 x 3.1 x 1.2" (220.98 x 78.74 x 30.48 mm) |
| Weight | 0.9 lbs (0.41 kg) |
