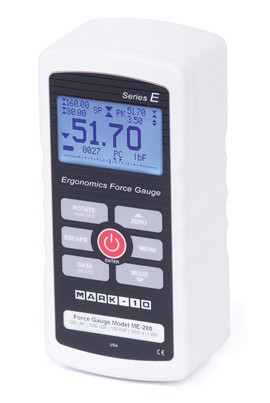

Ideal for workplace design, strength assessment, and ergonomic studies with a capacity of up to 100 lbF (500 N), this force gauge makes jobs of task and ergonomics analysis simple and accurate. In addition, it presents ergonomists and other professionals with an easy and economical testing solution.
Ideal for workplace design, strength assessment, and ergonomic studies with a capacity of up to 100 lbF (500 N), this force gauge makes jobs of task and ergonomics analysis simple and accurate. In addition, it presents ergonomists and other professionals with an easy and economical testing solution.
Ruggedly built for many years of service in laboratory and industrial environments, this force gauge allows ergonomists and other professionals a simple and economical testing solution.
Features
Click-lock technology
Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, reducing the risk of damage to the instrument.
Applications
| Capacity x Resolution | 100 x 0.05 lbF 1600 x 1 ozF 50 x 0.02 kgF 50,000 x 20 gF 500 x 0.2 N |
| Accuracy | ±0.2% of full scale |
| Sampling Rate | 7000 Hz |
| Safe Overload | 200% of full scale (display shows "OVER" at 110% and above) |
| USB Output | Configurable up to 115,200 baud |
| Environmental Requirements | 40 to 100°F (4 to 37.8°C), maximum 93% humidity, non-condensing |
| Power | AC or rechargeable battery Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low |
| Battery Life | Backlight on: Up to 7 hours of continuous use Backlight off: Up to 24 hours of continuous use |
| Dimensions | 2.65 x 1.8 x 5.86" (67.3 x 45.7 x 148.9 mm) |
| Weight | 1.7 lbs (0.8 kg) |
Click on a category to view a selection of compatible accessories with the Mark-10 ME-100 Series E Ergonomics Force Gauge, 100 x 0.05 lbF.
| Capacity x Resolution | 100 x 0.05 lbF 1600 x 1 ozF 50 x 0.02 kgF 50,000 x 20 gF 500 x 0.2 N |
| Accuracy | ±0.2% of full scale |
| Sampling Rate | 7000 Hz |
| Safe Overload | 200% of full scale (display shows "OVER" at 110% and above) |
| USB Output | Configurable up to 115,200 baud |
| Environmental Requirements | 40 to 100°F (4 to 37.8°C), maximum 93% humidity, non-condensing |
| Power | AC or rechargeable battery Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low |
| Battery Life | Backlight on: Up to 7 hours of continuous use Backlight off: Up to 24 hours of continuous use |
| Dimensions | 2.65 x 1.8 x 5.86" (67.3 x 45.7 x 148.9 mm) |
| Weight | 1.7 lbs (0.8 kg) |
