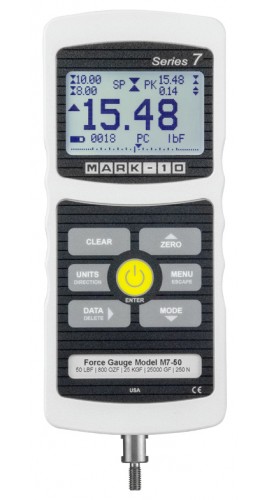

Mark-10 M7-20 Series 7 Professional Digital Force Gauge, 20 x 0.005 lbF

Model: M7-20

Downloads: datasheet manual

Mark-10 M7-20 Series 7 Professional Digital Force Gauge, 20 x 0.005 lbF

Model: M7-20

Ideal for the most demanding tension and compression measurement applications up to 20 lbF (100 N), this force gauge offers a ±0.1% accuracy and a fast sampling rate of 14,000 Hz, producing reliable results for quick-action tests. In addition, it features high-speed continuous data capture and storage with memory for up to 5000 readings.

Sale Price	$1805.00 USD
Regular Price	$1900.00 USD
Availability	1 Week1 to 2 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your M7-20 Series 7 Professional Digital Force Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIFOR1) for only $240.00 USD

Traceable Calibration Certificate for your M7-20 Series 7 Professional Digital Force Gauge

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIFOR1) for only $240.00 USD

Recommended Accessories

Mark-10 AC1051 Footswitch for Series 7 / Model 7i

AC1051

MARK-10 G1101 Parallel Jaw Grip, Medium, 200 lbF

G1101

Mark-10 AC1052 Force Gauge Mounting Plate, 0.12 - 500 lbF

AC1052

Mark-10 AC1045 Force Gauge Adapter Kit, #10-32F

AC1045

Mark-10 G1107 Snap Hook, Swivel Clasp, 500lbF Capacity

G1107

Mark-10 M7-20 Offers

Ruggedly built for many years of service in laboratory and industrial environments, this force gauge features programmable foot switch sequencing, break detection, and 1^st/2^nd peak detection. Additionally, it includes a coefficient of friction and user-defined units of measurement. For productivity enhancement, it also features automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, and external triggers.

Features

High-speed 14,000 Hz sampling rate
Continuous data capture of up to 5000 data points, at up to 14,000 Hz, downloadable to a PC
Individual data point memory for up to 5000 readings, downloadable to a PC
USB, RS-232, Mitutoyo, and analog outputs
Sample break detection with auto functions, including stopping movement of a motorized test stand
Automatic output/data storage/zeroing upon various event completions
1^st/2^nd peak detection
Five units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
Programmable foot switch command string
Programmable set points, with indicators and outputs
Averaging mode - calculates average readings over time
External trigger mode - for switch contact testing or remotely stopping display update
Password protection, configurable for individual keys and calibration

High-speed data capture and storage

Capture and store up to 5000 continuous data points at a rate of up to 14,000 readings per second. This unique function is ideal for capturing switch activation forces, sharp breaks, and other short-duration applications. Configurable start and stop triggers are provided. The data acquisition rate is variable and can be slowed to also capture longer events, such as structure relaxation, material expansion, and others.

Data from the storage buffer can be exported to data collection software such as MESUR® gauge for further analysis and graphing. Using this force gauge could replace cumbersome and expensive data acquisition hardware and software.

Foot switch command string

Integrate your foot switch/automation system with this force gauge to improve testing ergonomics and efficiency; no need for multiple key presses. Up to three steps may be programmed for a single foot switch activation. Select from several commands, including request peak reading, zero the display, save to memory, and others. Time delays can be inserted between each step.

Automatic data output/save/zero/I/O pin toggle

Upon completion of several event types, this force gauge can perform the following automatic functions:

Save the peak reading to memory
Transmit the peak reading via USB, RS-232, or Mitutoyo output
Zero the display
Toggle an I/O pin, for example to stop movement of motorized test stand

Applicable events include:

Sample break detection (also applicable to samples which slip, click, or otherwise reach a peak, then fall)
Completion of an averaging sequence
External trigger (ex. switch activation)
1^st/2^nd peak capture (ex. tensile testing)

User-defined unit of measurement

This force gauge displays six standard units of measurement. One additional user-defined unit is provided for unique applications. A base unit is specified, along with a multiplier, and 5-character name.

Typical applications:

To measure the torque produced by pressing on a lever in a mechanical assembly, configure the multiplier based on the length of the lever, thereby converting a unit such as N into Ncm
To measure the pressure produced by a circular compression plate on a foam sample, configure the multiplier based on the area of the plate, thereby converting a unit such as lbF into psi

Applications

Tension and compression measurement
Laboratory
Industrial

Mark-10 M7-20 Specifications

Capacity x Resolution	20 x 0.005 lbF 320 x 0.1 ozF 10 x 0.002 kgF 10,000 x 2 gF 100 x 0.02 N
Accuracy	±0.1% of full scale
Sampling Rate	14,000 Hz, pulse response of 1/7000 seconds minimum
Safe Overload	200% of full scale (display shows "OVER" at 110% and above)
Outputs	USB/RS-232: Configurable up to 115,200 baud, automatic output available up to 250 Hz (includes Gauge Control Language 2 for full computer control) Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices Analog: ±1 V DC, ±0.25% of full scale at capacity General purpose: Three open drain outputs, one input Set points: Three open drain lines
Load Cell Deflection	0.010 (0.25)
Environmental Requirements	40 to 100°F (4 to 37.8°C), maximum 96% humidity, non-condensing
Power	AC adapter: 100 to 240 V AC, 50 to 60 Hz, 0.3 A Battery: Rechargeable 8.4 V NiMH Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage Battery life: Up to 7/24 hours of continuous use (backlight on/off)
Thread	#10-32M UNF
Dimensions	2.53 x 1.32 x 5.88" (64.3 x 33.6 x 149.4 mm)
Weight	1 lbs (0.45 kg)

Click here for complete specifications on the Mark-10 M7-20

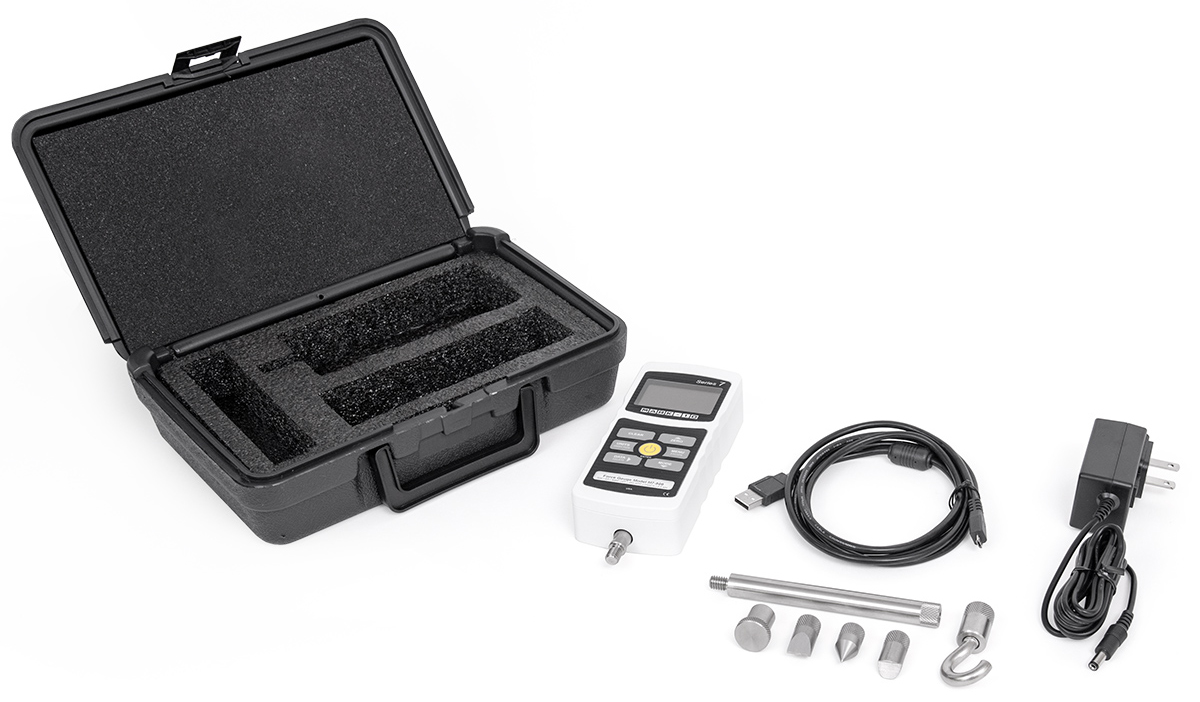

What's included with the Mark-10 M7-20

Force Gauge
Certificate of Calibration with Data
Extension Rod
Cone Attachment
Chisel Attachment
V-Groove Attachment
Flat Attachment
Hook Attachment
USB Cable
Carrying Case
Battery
AC Adapter
Three-Year Warranty
