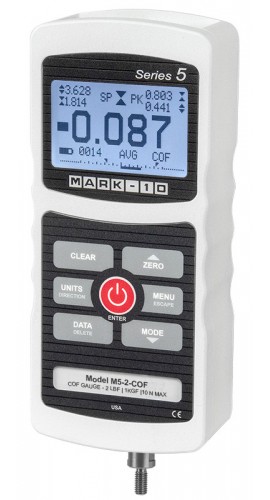

Ideal for conformance to ASTM D1894 and other relevant standards, this gauge features a capacity of 2 lbF (10 N) and can measure friction for a wide range of materials. In addition, static and kinetic coefficients are displayed on the backlit LCD and calculated from a user-programmable sled weight.
Ideal for conformance to ASTM D1894 and other relevant standards, this gauge features a capacity of 2 lbF (10 N) and can measure friction for a wide range of materials. In addition, static and kinetic coefficients are displayed on the backlit LCD and calculated from a user-programmable sled weight.
Ruggedly built for many years of service in laboratory and industrial environments, this gauge can also be used for several common tension and compression testing applications.
Features
Applications
| Capacity x Resolution | 2 x 0.0005 lbF 32 x 0.01 ozF 1 x 0.0002 kgF 1000 x 0.2 gF 10 x 0.002 N |
| Accuracy | ±0.1% of full scale |
| Sampling Rate | 7000 Hz |
| Safe Overload | 150% of full scale (display shows "OVER" at 110% and above) |
| Outputs | USB/RS-232: Configurable up to 115,200 baud (includes Gauge Control Language 2 for full computer control) Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices Analog: ±1 V DC, ±0.25% of full scale at capacity General purpose: Three open drain outputs, one input Set points: Three open drain lines |
| Environmental Requirements | 40 to 100°F (4 to 37.8°C), maximum 96% humidity, non-condensing |
| Power | AC or rechargeable battery Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low Battery life: Up to 7/24 hours of continuous use (backlight on/off) |
| Dimensions | 2.53 x 1.32 x 5.88" (64.3 x 33.6 x 149.4 mm) |
| Weight | 1 lbs (0.45 kg) |
Click on a category to view a selection of compatible accessories with the Mark-10 M5-2-COF Coefficient of Friction Gauge, 2 x 0.0005 lbF.
