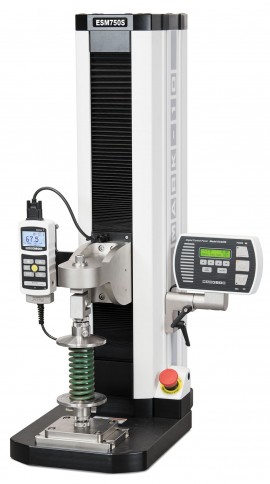

Highly configurable single-column force tester with force gauge mount for tension and compression measurement applications up to 750 lbF (3.4 kN). Sample setup and fine positioning are a breeze with available FollowMe™ force-based positioning - by using your hand as your guide, push and pull on the load cell or force gauge to move the crosshead at a dynamically variable rate of speed.
Highly configurable single-column force tester with force gauge mount for tension and compression measurement applications up to 750 lbF (3.4 kN). Sample setup and fine positioning are a breeze with available FollowMe™ force-based positioning - by using your hand as your guide, push and pull on the load cell or force gauge to move the crosshead at a dynamically variable rate of speed.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Features
| Load Capacity | 750 lbF (3.4 kN) at < 35" (900 mm)/min 500 lbF (2.3 kN) at > 35" (900 mm)/min |
| Maximum Travel | 14.2" (360 mm) |
| Standard Speed Range | 0.5 to 24"/min (10 to 600 mm/min) |
| Optional Speed Range | 0.001 to 60"/min (0.02 to 1,525 mm/min) |
| Speed Setting Accuracy | ±0.2% |
| Speed Variation with Load | ±0% (Stepper Motor Driven) |
| Travel Accuracy | ±0.002" per 10" (±0.05 mm per 250 mm) |
| Travel Resolution | 0.001" (0.02 mm) |
| Limit Switch Repeatability | ±0.001" (0.03 mm) |
| Power | Universal input 80 to 240 VAC, 50/60 Hz, 120 W |
| Weight (Test Stand Only) | 150 lb (68 kg) |
| Shipping Weight | 196 lb (88 kg) |
Click on a category to view a selection of compatible accessories with the Mark-10 ESM750SFG Motorized Test Stand with Force Gauge Mount, 750 lbF / 3.4 kN, 110V.
