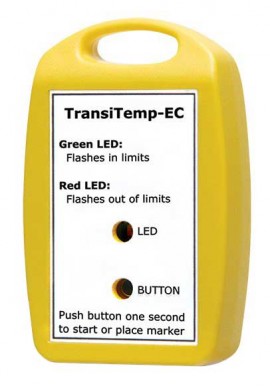

MadgeTech TransiTemp-EC In-Transit Temperature Data Logger

Model: TransiTemp-EC

MadgeTech TransiTemp-EC In-Transit Temperature Data Logger

Model: TransiTemp-EC

Designed for high volume, single-use in-transit recording. User-programmable, dual LEDs provide device status and alarm conditions for immediate validation.

Designed for high volume, single-use in-transit recording. User-programmable, dual LEDs provide device status and alarm conditions for immediate validation.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

MadgeTech TEMP101A Ambient Temperature Data Logger-

MadgeTech TEMP101A Ambient Temperature Data Logger

Model: TEMP101A

Compact data logger measures and records ambient temperatures from -40 to 80°C (-40 to 176°F). Features a 10 year battery life and and the ability to store up to 2,064,384 time and date stamped readings.

Please note: The Madgetech IFC200 USB Interface Cable Package is a required accessory for use with this product.


MadgeTech TransiTemp-EC Offers

Made for high-volume, in-transit readings, this Madgetech TransiTemp-EC Temperature Data Logger stores information for up to 8,191 measurements, which you can then archive or analyze by retrieving the information via a compatible computer. The dual-LED notification system keeps you apprised of the unit's status.

Features

  • Designed for high-volume, in-transit recordings of temperature from -4 to 158°F (-20 to 70°C)
  • Records data for up to 8,191 measurements
  • Hold down the recessed push button to start the logger from a computer
  • Plug the data logger into an empty COM or USB port to offload the data for archiving or analysis purposes
  • Molded case with handle delivers a durable design
  • Green LED blinks 4 times when the data logger starts up and continues to blink in 10-second intervals when the unit is logging information
  • Red LED blinks 4 times when the data logger stops taking data and continues to blink in 10-second intervals when an alarm condition occurs

MadgeTech TransiTemp-EC Specifications

Temperature Range -4 to 158°F (-20 to 70°C)
Temperature Sensor Internal semiconductor
Temperature Resolution 0.18°F (0.1°C)
Temperature Calibrated Accuracy ±0.5°C (-10 to 40°C), ±1°C (-20 to 70°C)
Memory 8,191 readings
Reading Rate 1 reading every 5 seconds up to 1 reading every 30 minutes
Alarm Yes
Baud Rate 38,400
LED Indicators Red, green
Push-Button Start Yes
Single-/Multi-Use Single
Battery Life 90 days
Material ABS plastic
Required Interface Package IFC203
Approval CE
Product Length 1.7" (44 mm)
Product Width 2.6" (67 mm)
Product Height 0.6" (16 mm)
Product Weight 0.06 lb (27.22 g)
Click here for complete specifications on the MadgeTech TransiTemp-EC

What's included with the MadgeTech TransiTemp-EC

  • MadgeTech TransiTemp-EC In-Transit Temperature Data Logger

MadgeTech TransiTemp-EC Offers

Made for high-volume, in-transit readings, this Madgetech TransiTemp-EC Temperature Data Logger stores information for up to 8,191 measurements, which you can then archive or analyze by retrieving the information via a compatible computer. The dual-LED notification system keeps you apprised of the unit's status.

Features

  • Designed for high-volume, in-transit recordings of temperature from -4 to 158°F (-20 to 70°C)
  • Records data for up to 8,191 measurements
  • Hold down the recessed push button to start the logger from a computer
  • Plug the data logger into an empty COM or USB port to offload the data for archiving or analysis purposes
  • Molded case with handle delivers a durable design
  • Green LED blinks 4 times when the data logger starts up and continues to blink in 10-second intervals when the unit is logging information
  • Red LED blinks 4 times when the data logger stops taking data and continues to blink in 10-second intervals when an alarm condition occurs

MadgeTech TransiTemp-EC Specifications

Temperature Range -4 to 158°F (-20 to 70°C)
Temperature Sensor Internal semiconductor
Temperature Resolution 0.18°F (0.1°C)
Temperature Calibrated Accuracy ±0.5°C (-10 to 40°C), ±1°C (-20 to 70°C)
Memory 8,191 readings
Reading Rate 1 reading every 5 seconds up to 1 reading every 30 minutes
Alarm Yes
Baud Rate 38,400
LED Indicators Red, green
Push-Button Start Yes
Single-/Multi-Use Single
Battery Life 90 days
Material ABS plastic
Required Interface Package IFC203
Approval CE
Product Length 1.7" (44 mm)
Product Width 2.6" (67 mm)
Product Height 0.6" (16 mm)
Product Weight 0.06 lb (27.22 g)
Click here for complete specifications on the MadgeTech TransiTemp-EC

What's included with the MadgeTech TransiTemp-EC

  • MadgeTech TransiTemp-EC In-Transit Temperature Data Logger
