Specific, Convenient Data Collection & Storage

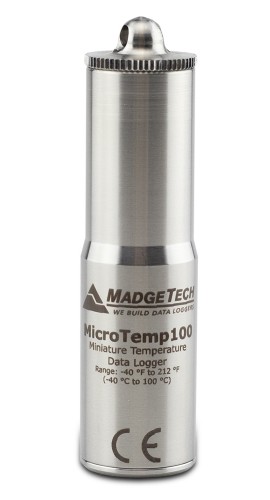

Built to withstand temperatures up to 212°F (100°C), the miniature submersible temperature data logger has only 2.6" (66 mm) tall and 0.7" (18 mm) in diameter. It can easily fit into the smallest spaces and is submersible up to 230' (70 m). It has a storage capacity of 32,767 readings and is compatible with the latest MadgeTech 4 software making starting, stopping, and downloading simple and easy.
Built to withstand temperatures up to 212°F (100°C), the miniature submersible temperature data logger has only 2.6" (66 mm) tall and 0.7" (18 mm) in diameter. It can easily fit into the smallest spaces and is submersible up to 230' (70 m). It has a storage capacity of 32,767 readings and is compatible with the latest MadgeTech 4 software making starting, stopping, and downloading simple and easy.
The miniature submersible temperature data logger has minimal long-term maintenance.
Features
Applications
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -40 to 212°F (-40 to 100°C) |
| Temperature Resolution | 0.18°F (0.1°C) |
| Temperature Calibrated Accuracy | ±0.5°C (0 to 50°C) ±1.0°C (50.1 to 100°C) ±2.0°C (-40.0 to -0.1°C) |
| Memory | 32,767 readings |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Battery Life | 1 year typical |
| Material | 316 L food grade stainless steel |
| IP Rating | IP68 |
| Operating Environment | -40 to 212°F (-40 to 100°C), 0 to 100 %RH |
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -40 to 212°F (-40 to 100°C) |
| Temperature Resolution | 0.18°F (0.1°C) |
| Temperature Calibrated Accuracy | ±0.5°C (0 to 50°C) ±1.0°C (50.1 to 100°C) ±2.0°C (-40.0 to -0.1°C) |
| Memory | 32,767 readings |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Battery Life | 1 year typical |
| Material | 316 L food grade stainless steel |
| IP Rating | IP68 |
| Operating Environment | -40 to 212°F (-40 to 100°C), 0 to 100 %RH |
