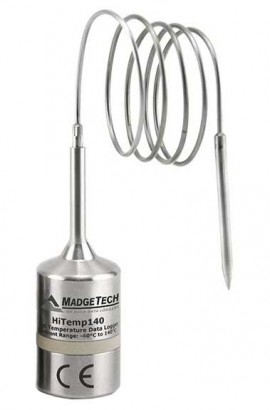

MadgeTech HiTemp140-PT-1 High Temperature Data Logger with 24" Bendable Probe, 1" Sheath

Model: HiTemp140-PT-1

MadgeTech HiTemp140-PT-1 High Temperature Data Logger with 24" Bendable Probe, 1" Sheath

Model: HiTemp140-PT-1

Submersible temperature data logger features a 24" (61 cm) flexible stainless steel probe with a 1" (2.5 cm) sheath that can be spiraled, bent or angled in any direction, making it easy to log temperatures in hard to reach places.

Submersible temperature data logger features a 24" (61 cm) flexible stainless steel probe with a 1" (2.5 cm) sheath that can be spiraled, bent or angled in any direction, making it easy to log temperatures in hard to reach places.

Your Price $539.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HiTemp140-PT-1 High Temperature Data Logger with 24" Bendable Probe

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HiTemp140-PT-1 High Temperature Data Logger with 24" Bendable Probe

MadgeTech HiTemp140-PT-1 Offers



With an extended temperature range of -328 to 662°F (-200 to 350°C), this Madgetech HiTemp140-PT-1 Temperature Data Logger with 24" (60.96 cm) Bendable Probe is ideal for your temperature measurement needs. The flexible probe can be spiraled, bent or angled to take measurements in hard-to-reach spots. The probe is made of stainless steel for rugged durability.

Features

  • 24" (60.96 cm) flexible stainless-steel probe with 1.7" (42 mm) tip can measure extended temperatures up to 662°F (350°C)
  • Offers an accuracy of ±0.18°F (0.1°C)
  • Flexible probe can be spiraled, bent or angled in nearly any direction for ease of use in tight spots
  • Nonvolatile solid state memory stores up to 32,700 readings, even if the battery runs out
  • Records stamped time and date readings
  • Works with Madgetech software (sold separately), which enables the start, stop and download of data from the data logger, and lets you view data in °C, °F, K or °R

MadgeTech HiTemp140-PT-1 Specifications


Temperature Sensor100 Ω platinum RTD
Temperature Resolution0.02°F (0.01°C)
Temperature Calibrated Accuracy68 to 284°F (20 to 140°C): ±0.18°F/±0.1°C, -4 to 67.98°F (-20 to 19.99°C): ±0.54°F/±0.3°C, -40 to -4.02°F (-40 to -20.01°C): ±0.72°F/±0.4°C
Probe Temperature Range-328 to 662°F (-200 to 350°C)
Memory32,700 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate125,000
MaterialStainless steel
IP RatingIP68
SubmersibleYes
Required Interface PackageIFC400
CE CompliantYes
Product Diameter0.97" (25 mm) body, 0.125" (3.2 mm) probe, 0.062" (1.6 mm) bendable portion
Product Length1.75" (45 mm) body, 1.7" (42 mm) probe, 22" (55.8 cm) bendable portion
Product Weight0.5 lbs (226.8 g)
Click here for complete specifications on the MadgeTech HiTemp140-PT-1

What's included with the MadgeTech HiTemp140-PT-1

  • MadgeTech HiTemp140-PT-1 High Temperature Data Logger with 24" Bendable Probe, 1" Sheath

Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140-PT-1 High Temperature Data Logger with 24" Bendable Probe, 1" Sheath.

MadgeTech 902063-00 Flat End Cap with spring for the 140 series End Cap
Flat end cap with spring, designed for use with the 140 Series data loggers. Ideal for secure and reliable enclosure.




MadgeTech HiTemp140-PT-1 Offers



With an extended temperature range of -328 to 662°F (-200 to 350°C), this Madgetech HiTemp140-PT-1 Temperature Data Logger with 24" (60.96 cm) Bendable Probe is ideal for your temperature measurement needs. The flexible probe can be spiraled, bent or angled to take measurements in hard-to-reach spots. The probe is made of stainless steel for rugged durability.

Features

  • 24" (60.96 cm) flexible stainless-steel probe with 1.7" (42 mm) tip can measure extended temperatures up to 662°F (350°C)
  • Offers an accuracy of ±0.18°F (0.1°C)
  • Flexible probe can be spiraled, bent or angled in nearly any direction for ease of use in tight spots
  • Nonvolatile solid state memory stores up to 32,700 readings, even if the battery runs out
  • Records stamped time and date readings
  • Works with Madgetech software (sold separately), which enables the start, stop and download of data from the data logger, and lets you view data in °C, °F, K or °R

MadgeTech HiTemp140-PT-1 Specifications


Temperature Sensor100 Ω platinum RTD
Temperature Resolution0.02°F (0.01°C)
Temperature Calibrated Accuracy68 to 284°F (20 to 140°C): ±0.18°F/±0.1°C, -4 to 67.98°F (-20 to 19.99°C): ±0.54°F/±0.3°C, -40 to -4.02°F (-40 to -20.01°C): ±0.72°F/±0.4°C
Probe Temperature Range-328 to 662°F (-200 to 350°C)
Memory32,700 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate125,000
MaterialStainless steel
IP RatingIP68
SubmersibleYes
Required Interface PackageIFC400
CE CompliantYes
Product Diameter0.97" (25 mm) body, 0.125" (3.2 mm) probe, 0.062" (1.6 mm) bendable portion
Product Length1.75" (45 mm) body, 1.7" (42 mm) probe, 22" (55.8 cm) bendable portion
Product Weight0.5 lbs (226.8 g)
Click here for complete specifications on the MadgeTech HiTemp140-PT-1

What's included with the MadgeTech HiTemp140-PT-1

  • MadgeTech HiTemp140-PT-1 High Temperature Data Logger with 24" Bendable Probe, 1" Sheath

Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140-PT-1 High Temperature Data Logger with 24" Bendable Probe, 1" Sheath.

MadgeTech 902063-00 Flat End Cap with spring for the 140 series End Cap
Flat end cap with spring, designed for use with the 140 Series data loggers. Ideal for secure and reliable enclosure.
