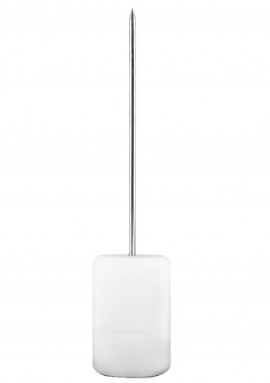

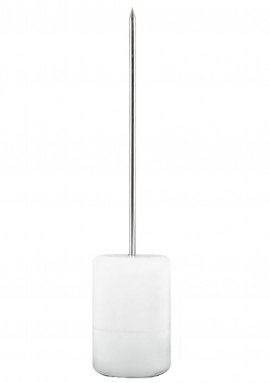

Rugged with high precision, this stainless steel high-temperature data logger can perform in harsh environments, is submersible, and can withstand temperatures up to 284°F (140°C). In addition, this data logger can store up to 32,256 readings and features a 7" (177.8 mm) probe and vented thermal shield.
Rugged with high precision, this stainless steel high-temperature data logger can perform in harsh environments, is submersible, and can withstand temperatures up to 284°F (140°C). In addition, this data logger can store up to 32,256 readings and features a 7" (177.8 mm) probe and vented thermal shield.
Whether you're working with conveyor ovens, performing dishwasher testing or undergoing food processing applications, this Madgetech HiTemp140-7-TSK Data Logger with Thermal Shield allows you to log a wide range of temperatures from -328 to 500°F (-200 to 260°C) using the 7" (17.78 cm) probe. Use the Madgetech 4 software to view easy-to-read reports of your recorded data.
Features
| Temperature Measurement | -328 to 500°F (-200 to 260°C) |
| Temperature Sensor | 100 Ω platinum RTD |
| Temperature Resolution | 0.02°F (0.01°C) |
| Start Modes | Software-programmable immediate start, delay start up to 18 months in advance |
| Stop Modes | Manual or timed (specific date and time) |
| Real-Time Recording | May be used with PC to monitor and record data in real time |
| Password Protection | Optional password may be programmed |
| Memory | 32,700 readings |
| Wrap Around | Yes |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Battery Type | 3.6 V high-temperature lithium battery |
| Battery Life | 1 year typical |
| Data Format | Date and time stamped,°C,°F, K,°R |
| Operating Temperature | -328 to 482°F (-200 to 250°C) |
| Material | 316 stainless steel |
| Dimensions | 7 x 0.19" (178 x 4.8 mm) |
| Weight | 4.2 oz (120 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140 High Temperature Data Logger with a 7" probe and vented thermal shield.
| Temperature Measurement | -328 to 500°F (-200 to 260°C) |
| Temperature Sensor | 100 Ω platinum RTD |
| Temperature Resolution | 0.02°F (0.01°C) |
| Start Modes | Software-programmable immediate start, delay start up to 18 months in advance |
| Stop Modes | Manual or timed (specific date and time) |
| Real-Time Recording | May be used with PC to monitor and record data in real time |
| Password Protection | Optional password may be programmed |
| Memory | 32,700 readings |
| Wrap Around | Yes |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Battery Type | 3.6 V high-temperature lithium battery |
| Battery Life | 1 year typical |
| Data Format | Date and time stamped,°C,°F, K,°R |
| Operating Temperature | -328 to 482°F (-200 to 250°C) |
| Material | 316 stainless steel |
| Dimensions | 7 x 0.19" (178 x 4.8 mm) |
| Weight | 4.2 oz (120 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140 High Temperature Data Logger with a 7" probe and vented thermal shield.
