A complete system used to perform autoclave validations consisting of a high temperature data logger, an interface cable and software providing tools to users to assist with FDA 21 CFR Part 11 compliance.
A complete system used to perform autoclave validations consisting of a high temperature data logger, an interface cable and software providing tools to users to assist with FDA 21 CFR Part 11 compliance.

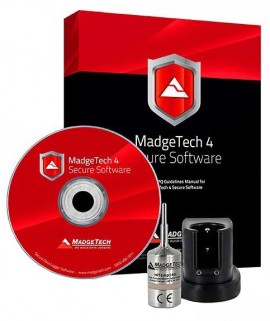

The Madgetech AVS140-1 Autoclave Validation Data Logging System provides tools to assist with FDA 21 CFR Part 11 compliance. This complete system, which is used to perform autoclave validations, comes with a high-temperature data logger, 1" (2.54 cm) probe, interface cable and Madgetech 4 Secure data logger software.
Features
| Temperature Sensor | 100 Ω platinum RTD |
| Temperature Resolution | 0.018°F (0.01°C) |
| Temperature Calibrated Accuracy | 68 to 284°F (20 to 140°C): ±0.18°F/±0.1°C, -4 to 67.98°F (-20 to 19.99°C): ±0.54°F/±0.3°C, -40 to -4.02°F (-40 to -20.01°C): ±0.72°F/±0.4°C |
| Probe Temperature Range | -328 to 500°F (-200 to 260°C) |
| Memory | 32,700 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Material | 316 stainless steel |
| IP Rating | IP68 |
| Submersible | Yes |
| Required Interface Package | IFC400 |
| CE Compliant | Yes |
| Product Diameter | 0.97" (25 mm) body, 0.125" (3.2 mm) probe |
| Operating Temperature | -40 to 284°F (-40 to 140°C) |
| Product Length | 1.55" (40 mm) body, 1" (25 mm) probe |
| Product Weight | 0.5 lbs (226.8 g) |
| Temperature Sensor | 100 Ω platinum RTD |
| Temperature Resolution | 0.018°F (0.01°C) |
| Temperature Calibrated Accuracy | 68 to 284°F (20 to 140°C): ±0.18°F/±0.1°C, -4 to 67.98°F (-20 to 19.99°C): ±0.54°F/±0.3°C, -40 to -4.02°F (-40 to -20.01°C): ±0.72°F/±0.4°C |
| Probe Temperature Range | -328 to 500°F (-200 to 260°C) |
| Memory | 32,700 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Material | 316 stainless steel |
| IP Rating | IP68 |
| Submersible | Yes |
| Required Interface Package | IFC400 |
| CE Compliant | Yes |
| Product Diameter | 0.97" (25 mm) body, 0.125" (3.2 mm) probe |
| Operating Temperature | -40 to 284°F (-40 to 140°C) |
| Product Length | 1.55" (40 mm) body, 1" (25 mm) probe |
| Product Weight | 0.5 lbs (226.8 g) |
