The USB PDF external probe temperature logger comes with advanced temperature recorder features of 16,000 log memory and two-year battery life. It measures and stores real-time temperature readings over a measurement range of -40 to 210°F (-40 to 99°C). It complies with international standards for temperature monitoring devices.
The USB PDF external probe temperature logger comes with advanced temperature recorder features of 16,000 log memory and two-year battery life. It measures and stores real-time temperature readings over a measurement range of -40 to 210°F (-40 to 99°C). It complies with international standards for temperature monitoring devices.

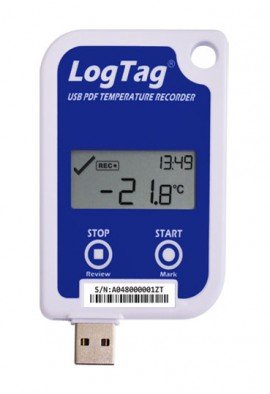

The LogTag® UTRED-16F is an affordable & reliable USB temperature recorder, measures and stores real time temperature readings. The USB PDF external probe temperature logger connects to a computer USB port for easy configuration by the user for a wide range of recording and alert conditions.
Features
Applications
| Sensor Measurement Range | -40 to 210°F (-40 to 99°C) |
| Temperature Range | Operating: -22 to 140°F (-30 to 60°C) Storage: 32 to 104°F (0 to 40°C) |
| Rated Temperature Reading | Resolution: Better than 0.1°F or 0.1°C Accuracy: Better than ±0.9°F (±0.5°C) for -4 to 104°F (-20°C to +40°C), typically ±0.6°F (0.3°C) Better than ±1.4°F (±0.8°C) for -40 to -4°F (-40 to -20°C ), typically ±0.9°F (0.5°C) Better than ±1.4°F (±0.8°C) for 104 to 158°F (40 to 70°C), typically ±1.3°F (0.7°C) Better than ±2.2°F (±1.2°C) for 158 to 210°F (70 to +99°C), typically ±1.8°F (1°C) |
| Recording Capacity | 16,129 temperature readings. 112 days @ 10min logging, 168 days @ 15min logging. Statistics memory (for display on LCD): Max/Min values and alarm duration values. |
| Sampling Interval | Configurable from 30 seconds to 18 hours |
| Power Source | CR2450 fixed, non-replaceable battery |
| Battery Life | Shelf life of up to two years before first use. Two year battery life after initial shelf life |
| Environmental | IEC 60529: IP64 with USB cap fitted |
| Alarms | 1 upper and 1 lower alarm |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF reader, LogTag analyzer 3.1.9 or higher |
| Dimensions | 3.67 x 2.15 x 0.39" (93 x 54.5 x 8.6 mm) including protective USB cap |
| Weight | 0.09 lb (39 g) |
| Case Material | Polycarbonate |
Click on a category to view a selection of compatible accessories with the LogTag UTRED-16 USB PDF External Probe Temperature Logger, -40 to 210°F.
| Sensor Measurement Range | -40 to 210°F (-40 to 99°C) |
| Temperature Range | Operating: -22 to 140°F (-30 to 60°C) Storage: 32 to 104°F (0 to 40°C) |
| Rated Temperature Reading | Resolution: Better than 0.1°F or 0.1°C Accuracy: Better than ±0.9°F (±0.5°C) for -4 to 104°F (-20°C to +40°C), typically ±0.6°F (0.3°C) Better than ±1.4°F (±0.8°C) for -40 to -4°F (-40 to -20°C ), typically ±0.9°F (0.5°C) Better than ±1.4°F (±0.8°C) for 104 to 158°F (40 to 70°C), typically ±1.3°F (0.7°C) Better than ±2.2°F (±1.2°C) for 158 to 210°F (70 to +99°C), typically ±1.8°F (1°C) |
| Recording Capacity | 16,129 temperature readings. 112 days @ 10min logging, 168 days @ 15min logging. Statistics memory (for display on LCD): Max/Min values and alarm duration values. |
| Sampling Interval | Configurable from 30 seconds to 18 hours |
| Power Source | CR2450 fixed, non-replaceable battery |
| Battery Life | Shelf life of up to two years before first use. Two year battery life after initial shelf life |
| Environmental | IEC 60529: IP64 with USB cap fitted |
| Alarms | 1 upper and 1 lower alarm |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF reader, LogTag analyzer 3.1.9 or higher |
| Dimensions | 3.67 x 2.15 x 0.39" (93 x 54.5 x 8.6 mm) including protective USB cap |
| Weight | 0.09 lb (39 g) |
| Case Material | Polycarbonate |
