Specific, Convenient Data Collection & Storage

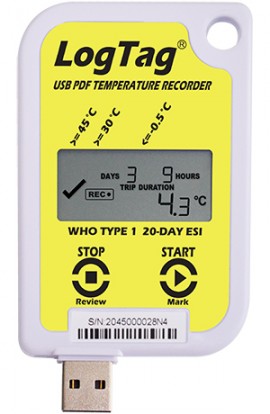

The single-use USB data logger is an electronic temperature recorder designed for transportaion of vaccines with pre-qualifications to WHO PQS E006/070 standards. It monitors freeze sensitive vaccines with WHO Type 1 alarm configuration and will automatically generates a PDF report and an Excel data file.
The single-use USB data logger is an electronic temperature recorder designed for transportaion of vaccines with pre-qualifications to WHO PQS E006/070 standards. It monitors freeze sensitive vaccines with WHO Type 1 alarm configuration and will automatically generates a PDF report and an Excel data file.
The WHO version of single-use USB shipping indicator records and stores real time temperature of goods being transported pre-qualified for World Health Organisation PQS E006 Standards. With the LogTag® Analyzer software measurement data can be downloaded automatically once plugged into the computer, generating a fully detailed PDF report for a more detailed analysis.
Features
Applications
| Sensor Measurement Range | -22 to 140°F (-30 to +60°C) |
| Operating Temperature Range | -22 to 140°F (-30 to +60°C) |
| Sensor Reaction Time | Typically less than 7 minutes (T90) in moving air (1m/s) |
| Recording Capacity | 5,760 temperature readings (20 days at 5 minute logging) |
| Sampling Interval | Factory set at 5 minutes (non-changeable) |
| Alarms | 3 alarms set at WHO requirements |
| Connection Interface | USB 2.0, A-type plug |
| Power Source | CR2032 3V LiMnO2 Battery (Non-Replaceable) |
| Real Time Clock | Built-in real time clock |
| Software | PDF Reader, LogTag Analyzer 3 or higher |
| Case Material | Polycarbonate |
| Dimensions | 3.6 x 2.14 x 0.34 " (93 x 54.5 x x8.6 mm) |
| Weight | 0.086 lbs (39 g) |
| Sensor Measurement Range | -22 to 140°F (-30 to +60°C) |
| Operating Temperature Range | -22 to 140°F (-30 to +60°C) |
| Sensor Reaction Time | Typically less than 7 minutes (T90) in moving air (1m/s) |
| Recording Capacity | 5,760 temperature readings (20 days at 5 minute logging) |
| Sampling Interval | Factory set at 5 minutes (non-changeable) |
| Alarms | 3 alarms set at WHO requirements |
| Connection Interface | USB 2.0, A-type plug |
| Power Source | CR2032 3V LiMnO2 Battery (Non-Replaceable) |
| Real Time Clock | Built-in real time clock |
| Software | PDF Reader, LogTag Analyzer 3 or higher |
| Case Material | Polycarbonate |
| Dimensions | 3.6 x 2.14 x 0.34 " (93 x 54.5 x x8.6 mm) |
| Weight | 0.086 lbs (39 g) |
