Specific, Convenient Data Collection & Storage

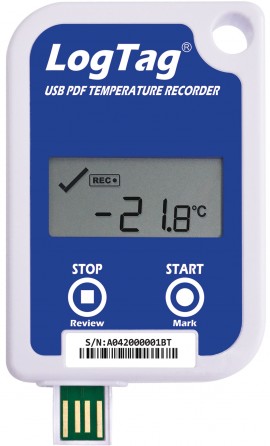

The USB temperature recorder is designed to measure and store real-time temperature readings over a measurement range of -22 to 140°F (-30 to 60°C), as well as a 16,000 log memory. Features an easy to read LCD with large symbols for easy inspection, and automatically generates an encrypted data file for a detailed analysis.
The USB temperature recorder is designed to measure and store real-time temperature readings over a measurement range of -22 to 140°F (-30 to 60°C), as well as a 16,000 log memory. Features an easy to read LCD with large symbols for easy inspection, and automatically generates an encrypted data file for a detailed analysis.
The single-use USB temperature recorder plugs directly into the computer USB for easy configuration by the user for a wide range of recording.
Features
Applications
| Sensor Measurement Range | -22 to 140°F (-30 to 60°C) |
| Temperature Range | Operating: -22 to 140°F (-30 to 60°C) Storage: 32 to 104°F (0 to 40°C) |
| Rated Temperature Reading | Accuracy: Better than ±0.9°F (±0.5°C) for 23 to +86°F (-5 to 30°C); ±1.5°F (±0.8°C) or better for measurements in other areas of rated range Resolution: Better than 0.1°F or °C |
| Recording Capacity | 16,129 temperature readings. 56 days @ 5min logging |
| Sampling Interval | Configurable from 30 seconds to 18 hours |
| Environmental | IEC 60529: IP64 with USB cap fitted |
| Alarms | 1 upper and 1 lower alarm |
| Power Source | Fixed CR2032 non-replaceable battery |
| Battery Life | Shelf life of up to two years before configuration (in standard hibernation mode). Six months operating life from the time of configuration |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag Analyzer 2.5 or higher |
| Dimensions | 3.66 x 2.15 x 0.34" (93 x 54.5 x 8.6 mm) including protective USB cap |
| Weight | 0.07 lb (31 g) |
| Case Material | Polycarbonate |
| Sensor Measurement Range | -22 to 140°F (-30 to 60°C) |
| Temperature Range | Operating: -22 to 140°F (-30 to 60°C) Storage: 32 to 104°F (0 to 40°C) |
| Rated Temperature Reading | Accuracy: Better than ±0.9°F (±0.5°C) for 23 to +86°F (-5 to 30°C); ±1.5°F (±0.8°C) or better for measurements in other areas of rated range Resolution: Better than 0.1°F or °C |
| Recording Capacity | 16,129 temperature readings. 56 days @ 5min logging |
| Sampling Interval | Configurable from 30 seconds to 18 hours |
| Environmental | IEC 60529: IP64 with USB cap fitted |
| Alarms | 1 upper and 1 lower alarm |
| Power Source | Fixed CR2032 non-replaceable battery |
| Battery Life | Shelf life of up to two years before configuration (in standard hibernation mode). Six months operating life from the time of configuration |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag Analyzer 2.5 or higher |
| Dimensions | 3.66 x 2.15 x 0.34" (93 x 54.5 x 8.6 mm) including protective USB cap |
| Weight | 0.07 lb (31 g) |
| Case Material | Polycarbonate |
