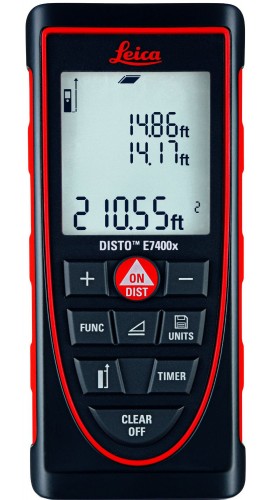

Leica DISTO E7400x Laser Distance Meter, 120m

Model: E7400x | Order No: 788472 | UPC: 7640110693285

Downloads: datasheet manual

Leica DISTO E7400x Laser Distance Meter, 120m

Model: E7400x | Order No: 788472 | UPC: 7640110693285

Can preform 9 measurement modes, and is intended for use on active job sites. It features a ruggedized chassis, a backlit LCD display, a precise laser module, and a tilt sensor. Eliminates the hassle of measuring diagonals and makes it easy for one person to get accurate measurements, regardless of distance, using the intelligent end piece and Min/Max mode.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Leica X3 DISTO Laser Distance Meter, 0.05 to 150m

Model: X3 | Order No: 850834

Perfect for tough construction site conditions. It is drop-tested up to 2m in height and water jet and dust protected to IP65 standards.

Learn More

Recommended Accessories

Leica TRI 100 Tripod with Tilting Head, 5ft

TRI 100

Leica TRI 75 Tripod with Flat Head, 45"

TRI 75

Leica TA360 Tripod Adapter

TA360

REED R1500 Tripod

R1500

Leica DISTO E7400x Offers

Features

Can switch between Meters, Feet, and Inches
Measure distances, area, volume, 3 point and partial height Pythagoras, and continuous measurement
Stake out function uses the continuous measurement mode to indicate where to place stakes along a stake-out line
Display Illumination
Saves the last 20 screens
Max/Min function
Painter function
Smart Horizontal Mode determines the level horizontal distance to a target when you have to shoot over an obstacle
Triangle room function
"Real time" height tracking for situations where you can hit a reflective target (like the ground) on the low end, but not at the top
Highly accurate 360° tilt sensor determines the angle of the laser
Power Range Technology
Store measurements and images with measurements associated with them
Set a timer to delay a measurement the same way you would with the shutter on a digital camera

Applications

Generating Estimates
Interior Design
Surveying
Construction
Carpentry
Measuring height of power lines or of trees

Leica DISTO E7400x Specifications

Typical Measuring Range	Up to 120m
Typical Measuring Accuracy	±1mm
Measuring Units	0.000m, 0.0000m, 0.00m, 0.00ft, 0'00" 1/32, 0'00" 1/16, 0'00" 1/8, 0'00" 1/4, 0.00in, 0in 1/32, 0in 1/16, 0in 1/8, 0in 1/4
Batteries	Type AAA 2 × 1.5 V
Measurements Per Set of Batteries	Up to 5000
Protection Class	IP65 – water jet protection and dust-tight
Dimensions (HxDxW)	122 × 55 × 31mm
Weight with batteries	155 g

Click here for complete specifications on the Leica E7400x

What's included with the Leica DISTO E7400x

Laser Distance Meter
Soft Carrying Pouch
Wrist Strap
Batteries

datasheet for the Leica DISTO E7400x Laser Distance Meter, 120m manual for the Leica DISTO E7400x Laser Distance Meter, 120m
