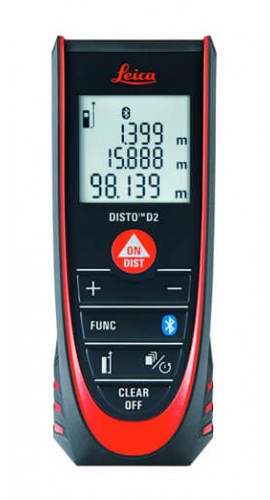

Leica 837031 DISTO D2 Laser Distance Meter, 0.16 up to 330', ±0.063"

Model: 837031

Leica 837031 DISTO D2 Laser Distance Meter, 0.16 up to 330', &plusmn;0.063&quot;-

Downloads: datasheet manual

Leica 837031 DISTO D2 Laser Distance Meter, 0.16 up to 330', ±0.063"

Model: 837031

The laser distance meter is fully-featured and designed for multiple purposes. It has 7 measurement modes and it is easy to operate. It also has higher accuracy at ±0.063" (±1.5 mm), and greater range 0.16 up to 330' (0.05 up to 100 m). The laser distance meter has an intelligent end piece that measures accurately from outside and inside corners or diagonal measurements.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Leica Disto D2-2 Laser Distance Meter, red, 492'

Model: Disto D2-2 | Order No: 1017800

Featuring ‘Smart Room’ function for quick room plans creation, this distance laser meter can measure up to 492' (150 m) and transfer data via NFC technology to the DISTO Plan app. Further features such as automatic position detection identifies the measuring reference point, while the fold-out end-piece sets the correct offset for edge and corner measurements.

Learn More

Leica Disto D2G-2 Laser Distance Meter, green, 394'

Model: Disto D2G-2 | Order No: 1017809

Offering up to four times greater visibility, measure up to 394' (120 m) with this compact green laser distance meter. Ideal for bright indoor environments, the ‘Smart Room’ function supports fast room plan creation. Further features, such as automatic position detection identifies measuring reference point, while the fold-out end-piece sets corrects offset for edge and corner measurements. Moreover, measurement data can be transferred directly to the DISTO Plan app using NFC and Bluetooth.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

Leica 760143 Universal Hand Loop for laser distance meters

760143

Leica 837817 Battery Cover for DISTO X3 and X4

837817

Leica 760209 Replacement Battery Cover for Disto D2 laser distance meter

760209

Leica 762198 Holster for Disto D2 laser distance meter

762198

Leica 723774 GZM27 Stick-On Target Plate for DISTO laser distance meters

723774

Leica 723385 GZM26 Target Plate for DISTO laser distance meters, A4

723385

Leica 837031 Offers

Features

Multifunctional end piece
Versatile thanks to useful measuring functions
Bluetooth® Smart Data Transfer
Easy distance measurement
Measuring units (meter, foot, inch)
Multiple functions
Waterproof IP54 protection

Applications

Distance Measurement

Leica 837031 Specifications

Specifications
Range	0.16 up to 330' (0.05 up to 100 m)
Accuracy	±0.0625" (±1.5 mm)
Measuring Unit	Meter, foot, inch
X-Range Power Technology	Yes
General Data Interface	Bluetooth® Smart
Multifunctional Endpiece	Yes
Battery	Type AAA 2 × 1.5 V
Protection Class	IP54
Dimension (HxDxW)	4.57 x 1.73 x 1.02" (116 × 44 × 26 mm)

Click here for complete specifications on the Leica 837031

What's included with the Leica 837031

Laser Distance Meter
Carrying Pouch
2 x AAA Batteries
Hand Loop
Quickstart Guide
Warranty Card
Safety Manual
Calibration Certificate Silver

datasheet for the Leica 837031 DISTO D2 Laser Distance Meter, 0.16 up to 330', ±0.063" manual for the Leica 837031 DISTO D2 Laser Distance Meter, 0.16 up to 330', ±0.063"

Click on a category to view a selection of compatible accessories with the Leica 837031 DISTO D2 Laser Distance Meter, 0.16 up to 330', ±0.063".

Loops

Leica 760143 Universal Hand Loop for laser distance meters 760143

The universal hand loop is for use with laser distance meters to provide additional protection against unintended drops. It features a small loop that conveniently fits through the holes on the side of each unit, ensuring hassle-free and quick attachment.

Covers

Leica 837817 Battery Cover for DISTO X3 and X4 837817

The battery cover for the laser distance meter ensures safety. It is constructed of high-quality plastic, offering long-lasting durability.

Leica 760209 Replacement Battery Cover for Disto D2 laser distance meter 760209

The replacement battery cover has a measurement of 2.7 x 1.3 x 0.63" (6.86 x 3.3 x 1.6 cm) to fit the battery compartment of the laser distance meter and ensure safe operation at all times. It is equipped with a metal clip for secure attachment. Made of durable ABS plastic for guaranteed long-lasting service.

Holster

Leica 762198 Holster for Disto D2 laser distance meter 762198

The holster offers storage and protection for the laser distance meter.

Plates

Leica 723774 GZM27 Stick-On Target Plate for DISTO laser distance meters 723774

The stick-on target plate is designed for laser distance meters to shoot to their maximum distances. It is a reusable target plate that sticks onto a corner and is held in place by a kneading adhesive. It comes in sizes of 2.87 x 3.85" (7.3 x 9.8 cm) or 5.78 x 3.85" (14.7 x 9.8 cm).

Leica 723385 GZM26 Target Plate for DISTO laser distance meters, A4 723385

The target plate is designed for laser distance meter in measuring non-reflective surfaces. It comes in 2 sides: the gray side is for shorter distances and the brown side is for longer distances. It is an A4 plate size approximately 8.27 x 11.69" ( 210 x 297 mm). It aids laser distance meters to shoot to their maximum distance capability of 328' (100 m).

Chargers

Leica 788956 UC20 Charger for DISTO laser distance meters 788956

The charger for laser distance meters is a handy kit designed for charging 2 AAA batteries. It features a microprocessor-controlled charger that automatically disconnects from the power once the batteries are fully charged. It is also equipped with LED charging indication to enable easy monitoring.
