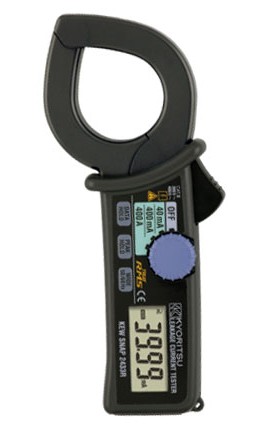

Kyoritsu 2433R Leakage Clamp Meter, 400A/0.01mA

Downloads: datasheet manual

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Features

Frequency selector switch to eliminate the effect of harmonics
Measures from 0.01mA to 199.9A AC
Tear drop shaped jaws for easy use in tight places and crowded cable areas
Maximum conductor size is 24mm in diameter
Data hold function to allow for easy readings in dimly illuminated or hard-to-reach locations
Rotary switch for easy power-on and range selection
Auto power-off function to conserve battery power

AC A (50/60Hz)
Range	40/400mA/400A
Accuracy	40/400mA: ±1%rdg ±5dgt 0 to 300A: ±1%rdg ±5dgt 300.1 to 399.9A: ±2%rdg
AC A (WIDE)
Range	40/400mA/400A
Accuracy	40/400mA 50/60Hz: ±1%rdg ±5dgt 20Hz to 1kHz: ±2.5%rdg ±10dgt 0 to 300A 50/60Hz: ±1% rdg ±5dgt 40Hz to 1kHz: ±2.5%rdg ±10dgt 300.1 to 399.9A 50/60Hz: ±2%rdg 40Hz to 1kHz: ±5%rdg
General Specifications
Frequency Response	40/400mA: 20Hz to 1kHz 400A: 40Hz to 1kHz
Maximum Circuit Voltage	Between Line/Neutral): 600V AC/DC Against Earth: 300V AC/DC
Conductor Size	Ø40mm max.
Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-032
Effect of External Stray Magnetic Field	10mA AC approx. in proximity to a 15mm diameter conductor carrying 100A AC
Withstand Voltage	3700V AC for 1 minute
Response Time	Approx. 2 seconds
Power Source	2 x R03 or equivalent DC1.5V batteries
Dimensions	185 x 81 x 32 mm
Weight	Approx. 270 g

datasheet for the Kyoritsu 2433R Leakage Clamp Meter, 400A/0.01mA manual for the Kyoritsu 2433R Leakage Clamp Meter, 400A/0.01mA
