The transmitter provides accurate air velocity and temperature data. It features a durable ABS enclosure.
The transmitter provides accurate air velocity and temperature data. It features a durable ABS enclosure.

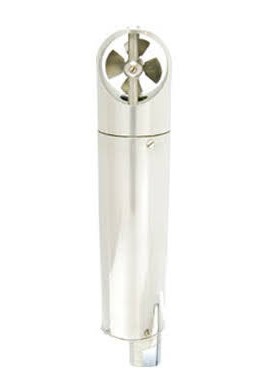

Get accurate air velocity and temperature data with the Kanomax KM6843 Air Velocity Transmitter. This transmitter processes airflow on a continuous basis to a computer, chart recorder, printer, meter or control unit. The heavy all-metal air probes ensure use in airstreams with varying humidity, temperature and contaminants. The concurrent outputs accept multiple wires, and the ABS plastic enclosure affords durability.
Features
| Product Height | 2.2" (5.6 cm) |
| Output Signal | 0 to 1 V; 0 to 5 V; 4 to 20 mA |
| Power Source | AC or DC |
| Product Width | 4.8" (12.19 cm) |
| Accuracy | ±0.5% full scale +0.75% reading (air velocity probe); ±0.02 mA (transmitter air velocity) |
| Product Length | 4.8" (12.19 cm); 5' (1.5 m) cable |
| Product Weight | 18 oz (510 g) |
| Response Time | 2 seconds (air velocity); approximately 60 seconds (temperature) |
| Operating Temperature | -4 to 176°F (-20 to 80°C) |
| Housing Material | ABS |
| Power Requirements | 120 or 220 VAC, 50 to 60 Hz; also 10 to 30 VDC |
| Measuring Medium | Air |
| Measuring Parameters | Air Velocity |
| Product Height | 2.2" (5.6 cm) |
| Output Signal | 0 to 1 V; 0 to 5 V; 4 to 20 mA |
| Power Source | AC or DC |
| Product Width | 4.8" (12.19 cm) |
| Accuracy | ±0.5% full scale +0.75% reading (air velocity probe); ±0.02 mA (transmitter air velocity) |
| Product Length | 4.8" (12.19 cm); 5' (1.5 m) cable |
| Product Weight | 18 oz (510 g) |
| Response Time | 2 seconds (air velocity); approximately 60 seconds (temperature) |
| Operating Temperature | -4 to 176°F (-20 to 80°C) |
| Housing Material | ABS |
| Power Requirements | 120 or 220 VAC, 50 to 60 Hz; also 10 to 30 VDC |
| Measuring Medium | Air |
| Measuring Parameters | Air Velocity |
