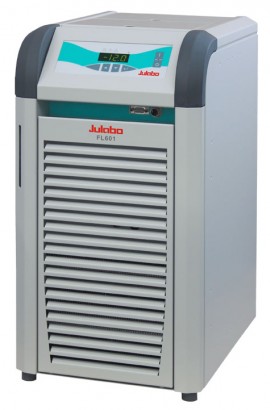

Ideal for various cooling tasks, this recirculating chiller features dependable microprocessor PID temperature control to adjust the cooling power to the load to save energy. In addition, this chiller features a splash-proof membrane keypad with an LED temperature display.
Ideal for various cooling tasks, this recirculating chiller features dependable microprocessor PID temperature control to adjust the cooling power to the load to save energy. In addition, this chiller features a splash-proof membrane keypad with an LED temperature display.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.
Save space with this recirculating chiller capable of being installed under a lab bench. Additionally, this chiller features a fill level indicator and overflow port on the back for effortless filling and draining.
Features
Applications
| Voltage | 115 V, 60 Hz (Nema N5-15 Plug) |
| Cooling of Compressor | 1-stage air |
| Temperature | Working range: -20 to 40°C Stability: ±0.5°C Ambient: 5 to 40°C Return flow maximum: 80°C Display resolution: 0.1°C Control: PID1 Display: LED Setting: Keypad |
| Cooling Capacity (Water Glycol) | 20°C, 0.6 kW 10°C, 0.5 kW 0°C, 0.4 kW -10°C, 0.32 kW -20°C, 0.1 kW |
| Refrigerant | R449A |
| Global Warming Potential for R449A | 1397 |
| Carbon Dioxide Equivalent | 0.363 t |
| Pump | Type: Centrifugal pump Connections: M16x1 male |
| Pump Capacity | Flow rate: 23 l/min Flow pressure: 14.5 bar |
| Bath Tank | Stainless steel |
| Sound Pressure Level | 55 dbA |
| Classification | Classification I (NFL) |
| IP Code | IP 21 |
| Filling Volume | 185.97 to 270.51 oz (5.5 to 8 l) |
| Barbed Fittings (Inner Diameter) | 8/12 mm |
| Dimensions | 19.7 x 12.6 x 24.4" (50 x 32 x 61.9 cm) |
| Weight | 105.8 lbs (47.99 kg) |
