This heating circulator boasts a working temperature range of 68 to 392°F (20 to 200°C). It also features a closed, insulated bath tank and an innovative 3.5in (8.89cm) color display.
This heating circulator boasts a working temperature range of 68 to 392°F (20 to 200°C). It also features a closed, insulated bath tank and an innovative 3.5in (8.89cm) color display.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

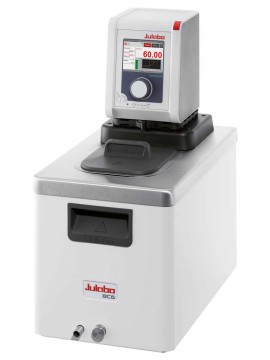

The Julabo DYNEO DD-BC6 Heating Circulator is designed with an adjustable pressure pump that delivers a flow rate of 5.8 GPM (22 LPM) at a pressure of 0.6 bar. It features a stainless-steel bath tank with high-quality insulation and a coil for counter-cooling, plus an integrated drain system that allows you to safely and easily empty liquids from the tank.
Features
| Temperature Range | 68 to 392°F (20 to 200°C) |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.59 gal (6 L) |
| Interfaces | Analog, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 17.3" (43.94 cm) |
| Product Width | 9.4" (23.88 cm) |
| Product Height | 18.5" (46.99 cm) |
| Product Weight | 21.4 lbs (9.71 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
