This heating circulator features a 3.5in (8.89cm) color TFT display and an integrated programmer. It is also equipped with an easy-to-operate central controller and an adjustable pressure pump.
This heating circulator features a 3.5in (8.89cm) color TFT display and an integrated programmer. It is also equipped with an easy-to-operate central controller and an adjustable pressure pump.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

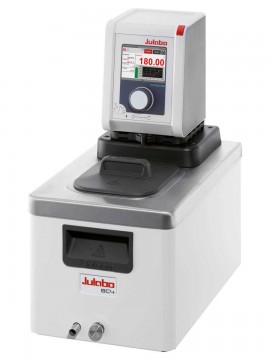

The Julabo DYNEO DD-BC4 Heating Circulator is designed for a variety of internal and external temperature applications. The pressure pump delivers a 5.8 GPM (22 LP m) flow rate at 0.6 bar and can be adjusted to suit your needs. The integrated drain system makes it simple and safe to drain liquids from the bath tank, while the 3.5" (8.89 cm) color TFT screen clearly displays data and other circulator information.
Features
| Temperature Range | 68 to 392°F (20 to 200°C) |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.19 gal (4.5 L) |
| Interfaces | USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 16.1" (40.89 cm) |
| Product Width | 9.1" (23.11 cm) |
| Product Height | 16.5" (41.91 cm) |
| Product Weight | 18.7 lbs (8.48 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
| Temperature Range | 68 to 392°F (20 to 200°C) |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.19 gal (4.5 L) |
| Interfaces | USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 16.1" (40.89 cm) |
| Product Width | 9.1" (23.11 cm) |
| Product Height | 16.5" (41.91 cm) |
| Product Weight | 18.7 lbs (8.48 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
