This refrigerated/heating circulator features an easy-to-operate central rotary knob and an integrated drain system. The adjustable pressure pump delivers a flow rate of 22L/min at 0.6bar.
This refrigerated/heating circulator features an easy-to-operate central rotary knob and an integrated drain system. The adjustable pressure pump delivers a flow rate of 22L/min at 0.6bar.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

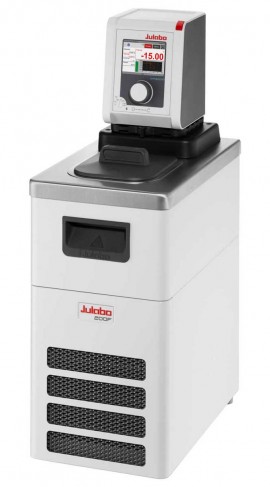

Use the Julabo DYNEO DD-200F Refrigerated/Heating Circulator for a variety of routine internal and external temperature control applications. The powerful machine features a cooling coil design that helps to save space in the stainless steel bath tank, and it has an adjustable pressure pump with a flow rate of 5.8 GPM (22 LP m). This circulator is also designed with a large 3.5" (8.89 cm) color TFT display and an RS232 interface.
Features
| Temperature Range | -4 to 392°F (-20 to 200°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.02 to 0.2 |
| Cooling Capacity | -4 to 392°F (-20 to 200°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.06 gal (4 L) |
| Compatible Refrigerant | R134a |
| Carbon Dioxide Equivalent (t) | 0.1 |
| Interfaces | RS-232, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 15.4" (39.12 cm) |
| Product Width | 9.1" (23.11 cm) |
| Product Height | 25.6" (65.02 cm) |
| Product Weight | 56.7 lbs (25.72 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
| Temperature Range | -4 to 392°F (-20 to 200°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.02 to 0.2 |
| Cooling Capacity | -4 to 392°F (-20 to 200°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.06 gal (4 L) |
| Compatible Refrigerant | R134a |
| Carbon Dioxide Equivalent (t) | 0.1 |
| Interfaces | RS-232, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 15.4" (39.12 cm) |
| Product Width | 9.1" (23.11 cm) |
| Product Height | 25.6" (65.02 cm) |
| Product Weight | 56.7 lbs (25.72 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
