This refrigerated/heating circulator boasts a voltage of 115V/60Hz. It is designed with an easy-to-operate central controller, an adjustable pressure pump and a compact cooling coil.
This refrigerated/heating circulator boasts a voltage of 115V/60Hz. It is designed with an easy-to-operate central controller, an adjustable pressure pump and a compact cooling coil.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

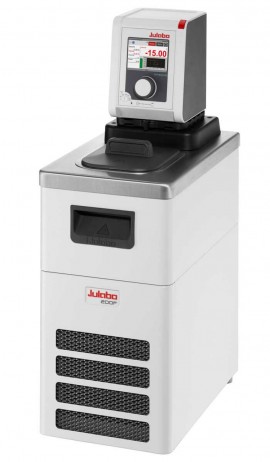

Designed for internal and external temperature applications, the Julabo DYNEO DD-200F Refrigerated/Heating Circulator can withstand an ambient temperature range of 41 to 104°F (5 to 40°C). It features a cooling coil design that helps to save space in the bath tank and a pressure pump that can be adjusted to suit the needs of your experiment. The 3.5" (8.89 cm) color TFT display is easy to read and navigate thanks to the innovative RS232 interface.
Features
| Temperature Range | -4 to 392°F (-20 to 200°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.02 to 0.2 |
| Cooling Capacity | -4 to 392°F (-20 to 200°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.06 gal (4 L) |
| Compatible Refrigerant | R134a |
| Carbon Dioxide Equivalent (t) | 0.1 |
| Interfaces | RS-232, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 15.4" (39.12 cm) |
| Product Width | 9.1" (23.11 cm) |
| Product Height | 25.6" (65.02 cm) |
| Product Weight | 56.7 lbs (25.72 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
