The 230V refrigerated/heating circulator is designed with an optimized cooling coil and an adjustable pressure pump. The standard USB port provides an enhanced connectivity option.
The 230V refrigerated/heating circulator is designed with an optimized cooling coil and an adjustable pressure pump. The standard USB port provides an enhanced connectivity option.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

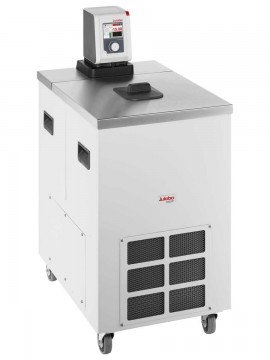

The Julabo DYNEO DD-1001F Refrigerated/Heating Circulator can be used for both internal and external temperature control applications. It features an optimized cooling coil and an adjustable pressure pump, in addition to a central rotary controller for straightforward operation. This circulator is also designed with an integrated drain to easily and safely empty liquid from the stainless steel bath.
Features
| Temperature Range | -36.4 to 212°F (-38 to 100°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.12 to 1 |
| Cooling Capacity | -22 to 68°F (-30 to 20°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 14.79 gal (56 L) |
| Compatible Refrigerant | R452A |
| Carbon Dioxide Equivalent (t) | 0.364 |
| Interfaces | USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 25.2" (64.01 cm) |
| Product Width | 17.7" (44.96 cm) |
| Product Height | 37.4" (95 cm) |
| Product Weight | 84.2 lbs (38.19 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
