This refrigerated/heating circulator features an adjustable pressure pump and an integrated drain system. It is also designed with an easy-to-read 3.5in (8.89cm) color display and a RS232 interface.
This refrigerated/heating circulator features an adjustable pressure pump and an integrated drain system. It is also designed with an easy-to-read 3.5in (8.89cm) color display and a RS232 interface.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

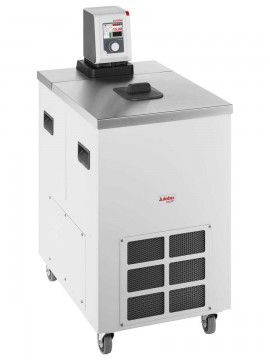

Utilize the Julabo DYNEO DD-1001F Refrigerated/Heating Circulator for both internal and external temperature control applications. The 5.8 GPM (22 LP m) pressure pump can be adjusted to suit your needs while the cooling coil is optimized to help save space in the bath tank. The 3.5" (8.89 cm) color TFT display makes it easy to view the temperature and other settings, while the RS232 interface allows you to connect a PC to remotely control the circulator.
Features
| Temperature Range | -36.4 to 212°F (-38 to 100°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.12 to 1 |
| Cooling Capacity | -22 to 68°F (-30 to 20°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 7.8 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 14.79 gal (56 L) |
| Compatible Refrigerant | R452A |
| Carbon Dioxide Equivalent (t) | 0.364 |
| Interfaces | RS-232, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 25.2" (64.01 cm) |
| Product Width | 17.7" (44.96 cm) |
| Product Height | 37.4" (95 cm) |
| Product Weight | 84.2 lbs (38.19 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
