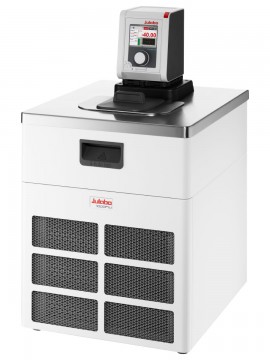

Julabo DYNEO DD-1000FW Refrigerated/Heating Circulator, one-stage water, -50 to 200°C

Model: DD-1000FW | Order No: 9021727.02

Julabo DYNEO DD-1000FW Refrigerated/Heating Circulator, one-stage water, -50 to 200&deg;C-

Downloads: datasheet manual

Julabo DYNEO DD-1000FW Refrigerated/Heating Circulator, one-stage water, -50 to 200°C

Model: DD-1000FW | Order No: 9021727.02

Suitable for demanding applications, this circulator features one-stage water and a -50 to 200°C working temperature range. Work with high heating/cooling capacities for short heat-up and cool-down times with this circulator. In addition, this circulator works precisely and reliably even at higher ambient temperatures.

Sale Price	$12873.72 USD
Regular Price	$18132.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Recommended Accessories

Julabo 8900110 USB to Serial RS-232 DB9 Adapter Cable, 8.04', USB type A

8900110

Julabo 8900020 Profibus DP Interface, 1 input

8900020

Julabo 8980036 ATEX Agile X Tablet, touchscreen, 8 devices

8980036

Julabo 8970850 Shut-Off Valve, -76 to 392°F, M16 x 1 male to female connector

8970850

Julabo 8970442 Elbows, M16 x 1 female, 2-pack

8970442

Julabo 8891605 Threaded Adapters, M16x1 F x 0.25" F, 2-pack

8891605

Julabo DD-1000FW Offers

Save space in the bath tank with this circulator's cooling coil design that features a powerful and infinitely adjustable pressure pump. Robust, reliable, and efficient, this circulator is ideal for internal and external applications in laboratories and technical facilities worldwide. In addition, this circulator offers easy and time-saving operations.

Features

Optimized cooling coil design saves space in the bath tank
Powerful and infinitely adjustable pressure pump
Flow rate 27 L/minute, pressure 0.7 bar
Easy switching between internal and external circulation
Large color TFT display, multilingual interface
Central rotary knob (controller) simplifies operation
Integrated programmer
Integrated external Pt100 connection
USB connection
Integrated drain makes emptying liquid easy and safe
Bath cover included with delivery
Removable ventilation grid
Powerful cooling machines
Brilliance in color: Large color display with vivid luminance is easy to read, even from a large distance
Information/everything clear: Information in plain text on a large color screen
Multilingual: Operation in multiple languages
Turn, push, and go: Easy operation of all parameters using the central rotary dial
Integrated programmer: The integrated internal programmer makes it possible to automatically run temperature time profiles
Poweful and adjustable: Strong pressure pump, continuously adjustable
USB: Remote control made easy using the integrated USB interface
Under control temperature: External Pt100 sensor connection for precise measurement and control directly in the external application
Fill level/monitored: Fill level indicator on the display for heat-transfer liquid
Process stability: Early warning - visual and acoustic - of critical states increases process stability
Process under control: Full regulation of the dynamics control, access to all important control parameters for individual process optimization
ATC3 calibration: 'Absolute Temperature Calibration' for compensating a physically caused temperature difference, three-point calibration
Stable/mobile: Rubber feet keeps these circulators standing firm and these larger and more powerful units also have integrated rollers for easy handling
Condensation protection (Superb design solution): Integrated ventilation directs air over the bath lid and minimizes condensation
For higher demands: PID temperature control with drift compensation and adjustable parameters, improved temperature stability for external applications, temperature stability ±0.01°C internal, <±0.1°C external
Easy connection: Inclined pump connections (M16 x 1) facilitate the connection of applications and each unit includes 2 barbed fittings of 0.67" (⁸⁄₁₂ mm) diameter each
Space saving: Place your circulator right next to an application, another unit, or wall and this is made possible by eliminating vents and connections on the sides

Applications

Laboratories
Technical facilities
Temperature control

Julabo DD-1000FW Specifications

115 V/60 Hz (Nema N5-20 Plug)
Heating Capacity kW	1
Viscosity Maximum cSt	50
Pump Capacity Flow	Rate L/minute: 8 to 27 Pressure bar: 0.1 to 0.7
Power Consumption A	16
Refrigerant Stage 1
Refrigerant	R449A
Global Warming Potential for R449A	1397
Carbon Dioxide Equivalent	0.265
Filling Weight	0.42 lbs (190 g)
Electronics
Interfaces	USB
Temperature	Control: PID1 Display: 3.5" (88.9 mm) TFT display Setting: Shaft encoder
Absolute Temperature Calibration	Three point calibration
General Specifications
Voltage	115 V/60 Hz, nema N5-20 plug, R449A
Cooling Capacity (Ethanol)	20°C: 1 kW 10°C: 1 kW 0°C: 0.96 kW -10°C: 0.73 kW -20°C: 0.51 kW -30°C: 0.25 kW -40°C: 0.11 kW
Bath	Tank: Stainless steel Cover: Integrated
Cooling	Of compressor: One-stage water Water temperature maximum C°: 30 Water pressure maximum bar: 6 Water difference pressure bar: 0.3 Water consumption L/minute: 1.1
Temperature	Setting the resolution of the temperature display °C: 0.1 Working range: -50 to 200°C Stability °C: ±0.01 Ambient: 5 to 40°C Display resolution °C: 0.01
Pump	Function: Pressure pump Type: Immersion pump Connections: M16 x 1 male
Filling Volume L	5 to 7.5
Classifications	Classification III (FL)
Dimensions	16.53 x 19.29 x 29.13" (42 x 49 x 74 cm) Barbed fittings inner diameter: 0.03" (⁸⁄₁₂ mm)
Weight	112.88 lbs (51.2 kg)

Click here for complete specifications on the Julabo DD-1000FW

What's included with the Julabo DD-1000FW

Refrigerated/Heating Circulator
2 x Barbed Fittings
One-Year Warranty
